3.7 Interface for stepper-motor controls (pulse-direction)
This interface can be used to connect the servo amplifier to a third-party stepper-motor controller.
The parameters for the servo amplifier are set up with the aid of the setup software (electrical gea
-
ring). The number of steps can be adjusted, so that the servo amplifier can be adjusted to the
pulse-direction signals of any stepper-motor controller. Various monitoring signals can be output.
The analog setpoint inputs are out of action.
AGND and DGND (connector X3) must be joined together !

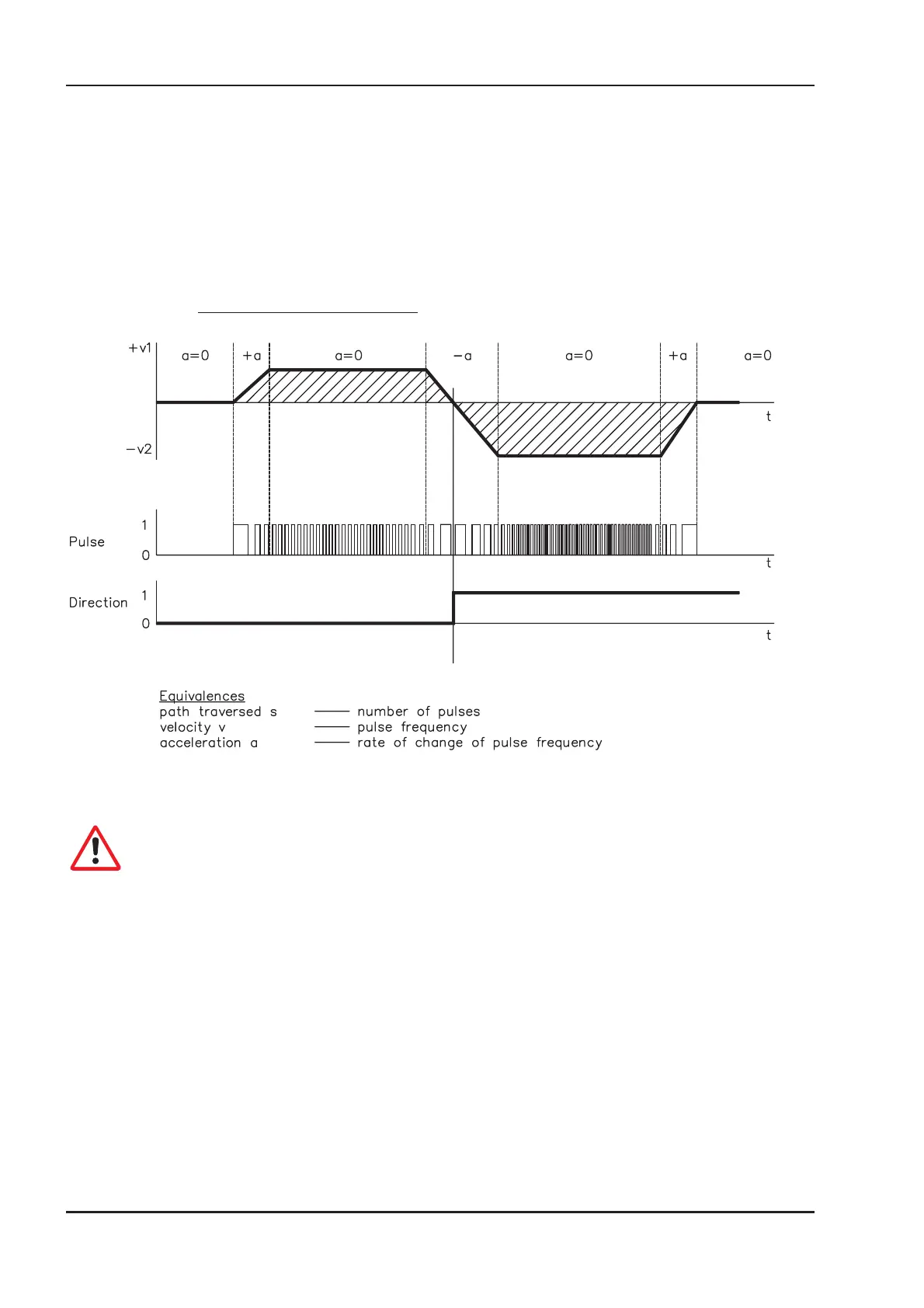

Speed profile and signal diagram
Note:
Encoder Input A quad B offers more EMI suppression.
