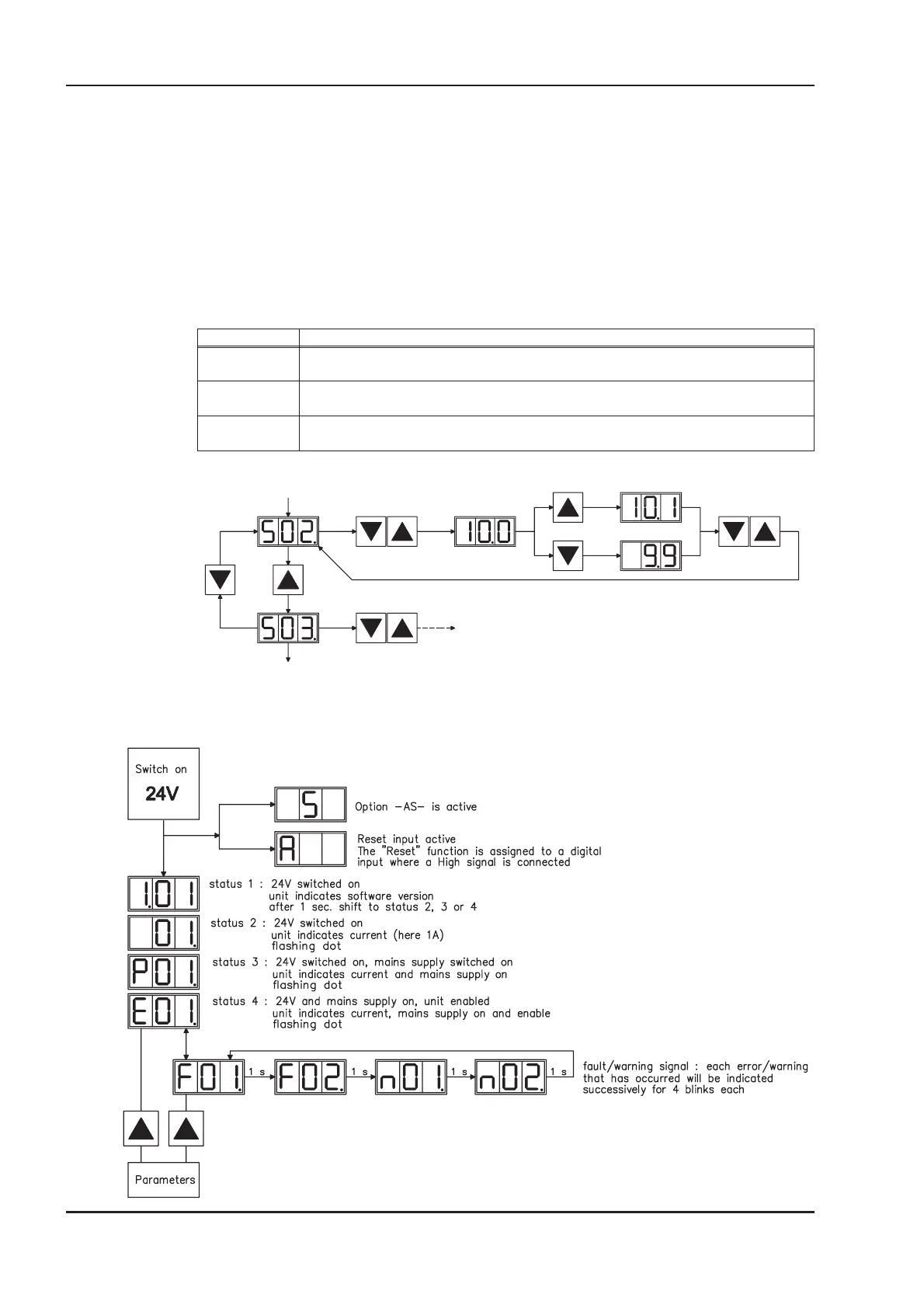

4.2.2 Key operation / LED display
In this chapter the two possible operation menus and the use of the keys in the front panel are
shown. Normally, the SERVOSTAR 600 only places the standard menu at your disposal. If you
want to attend the amplifier via the detailed menu, you must keep the right key pressed while swit
-
ching on the 24V-supply.
4.2.2.1 Key operation
The two keys can be used to perform the following functions:
Key symbol Functions
U
press once : go up one menu item, increase number by one
press twice in rapid succession : increase number by ten
U
press once : go down one menu item, decrease number by one
press twice in rapid succession : decrease number by ten
U
U
press and hold right key, then press left key as well :
enter a number, return function name
4.2.2.2 Status display
58 SERVOSTAR
®
601...620 Installation Manual
Setup 03/04 Kollmorgen
