5.3.3 Connection technology

Cable selection, cable routing, shielding, bus connector, bus termination and transmission times are

all described in the “Installation guidelines for PROFIBUS-DP/”, Order No. 2.111, from PNO, the

PROFIBUS User Organization.

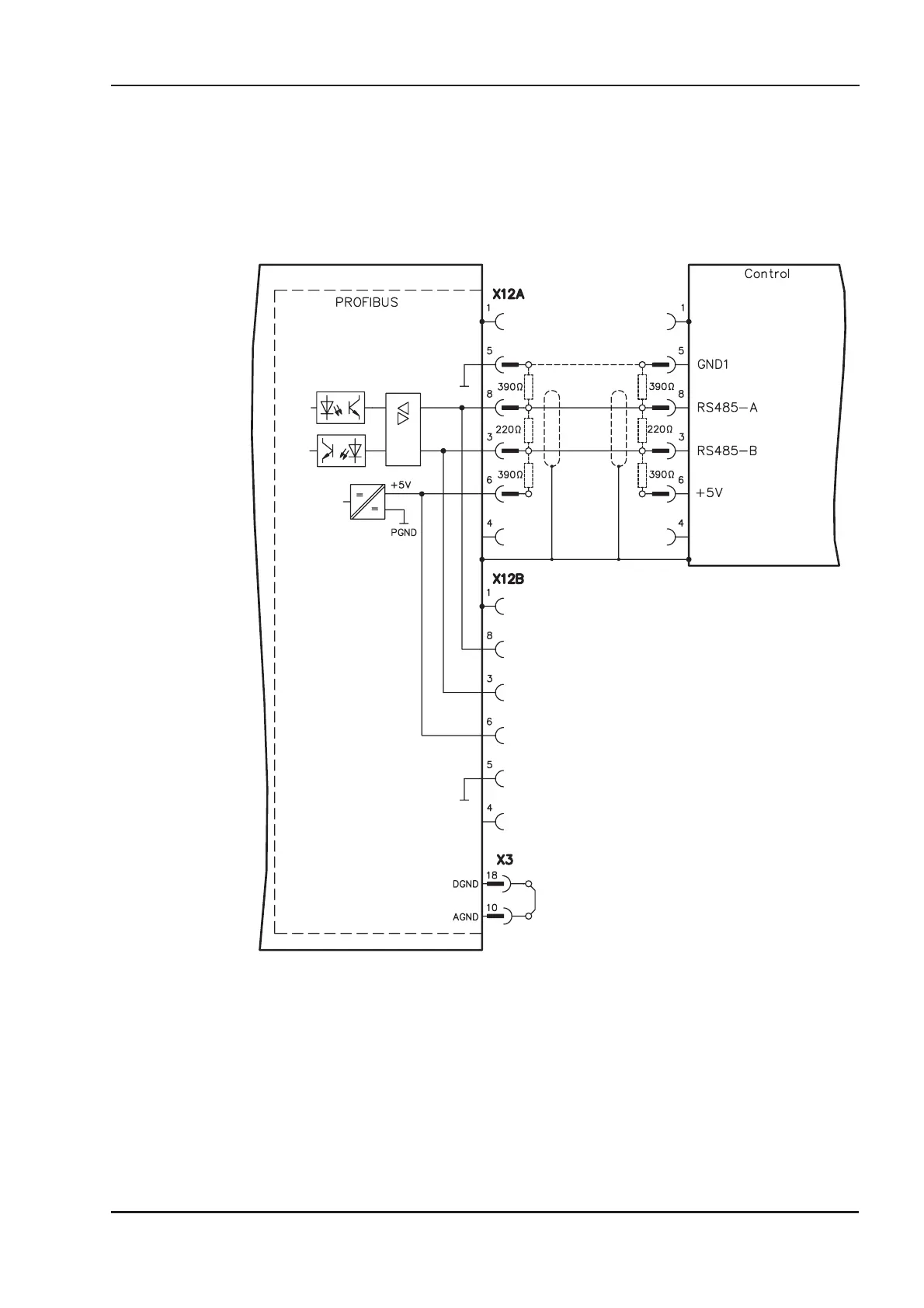

5.3.4 Connection diagram

AGND and DGND (connector X3) must be joined together !

SERVOSTAR

601...620 Installation Manual 73

Kollmorgen 03/04 Extensions / Accessories
