2J0/2J1/2J2
1-5-18

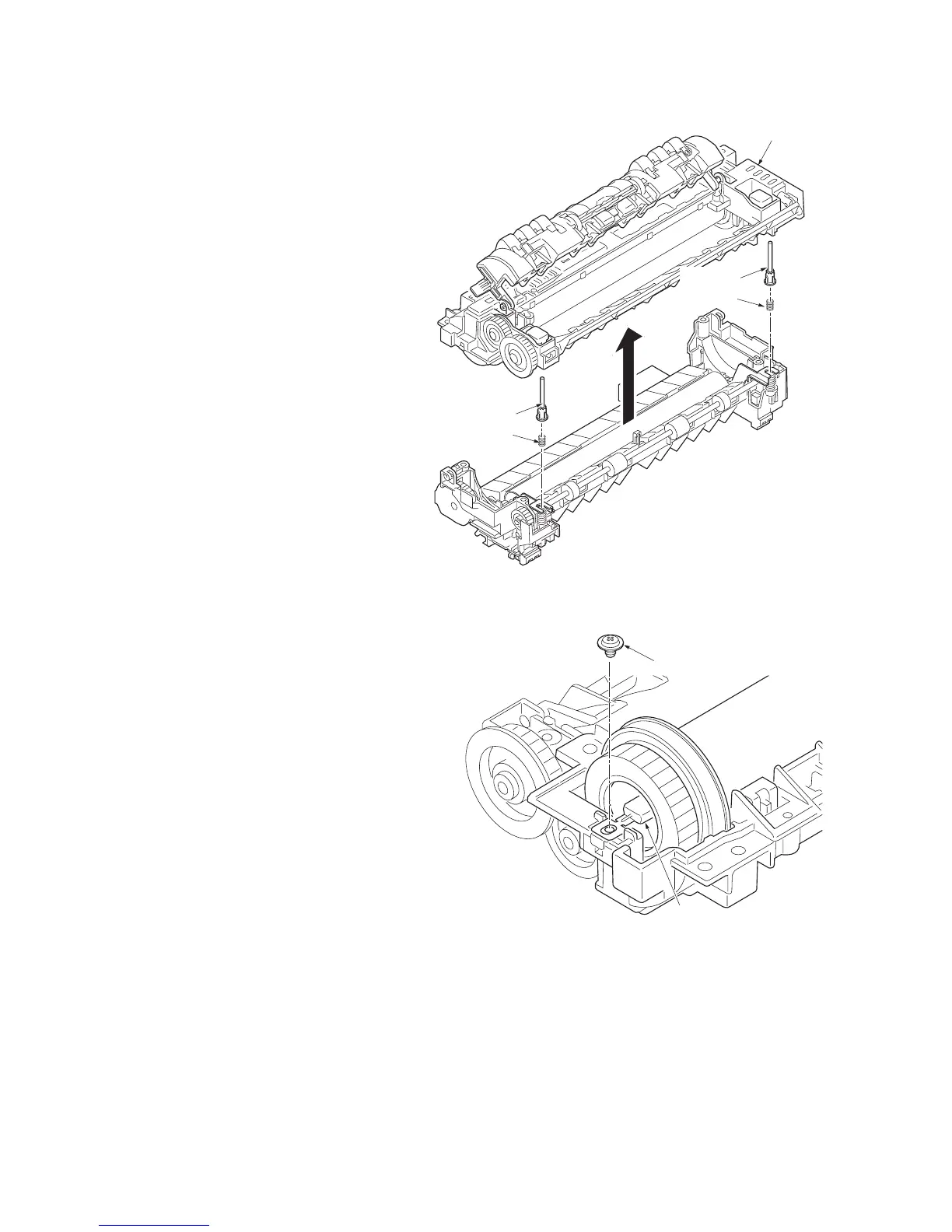

4. Detach the fuser upper frame.
Figure 1-5-22
5. Remove the one screw from the fuser
heater lamp.
Figure 1-5-23
Fuser upper frame
Spring
Spring
Fuser rod
Fuser rod
Screw
Fuser heater lamp
