2J0/2J1/2J2
1-5-29
22. Remove one connector.
23. Remove two screws-A and then remove the
HV plate.
24. Remove two screws-B and then remove the
engine R grounding plate, engine L ground-
ing plate and shield plate.
25. Check or replace the engine PWB and refit
all the removed parts.
To replace the engine PWB, remove the
EEPROM from the old engine PWB and
mount it to the new engine PWB.

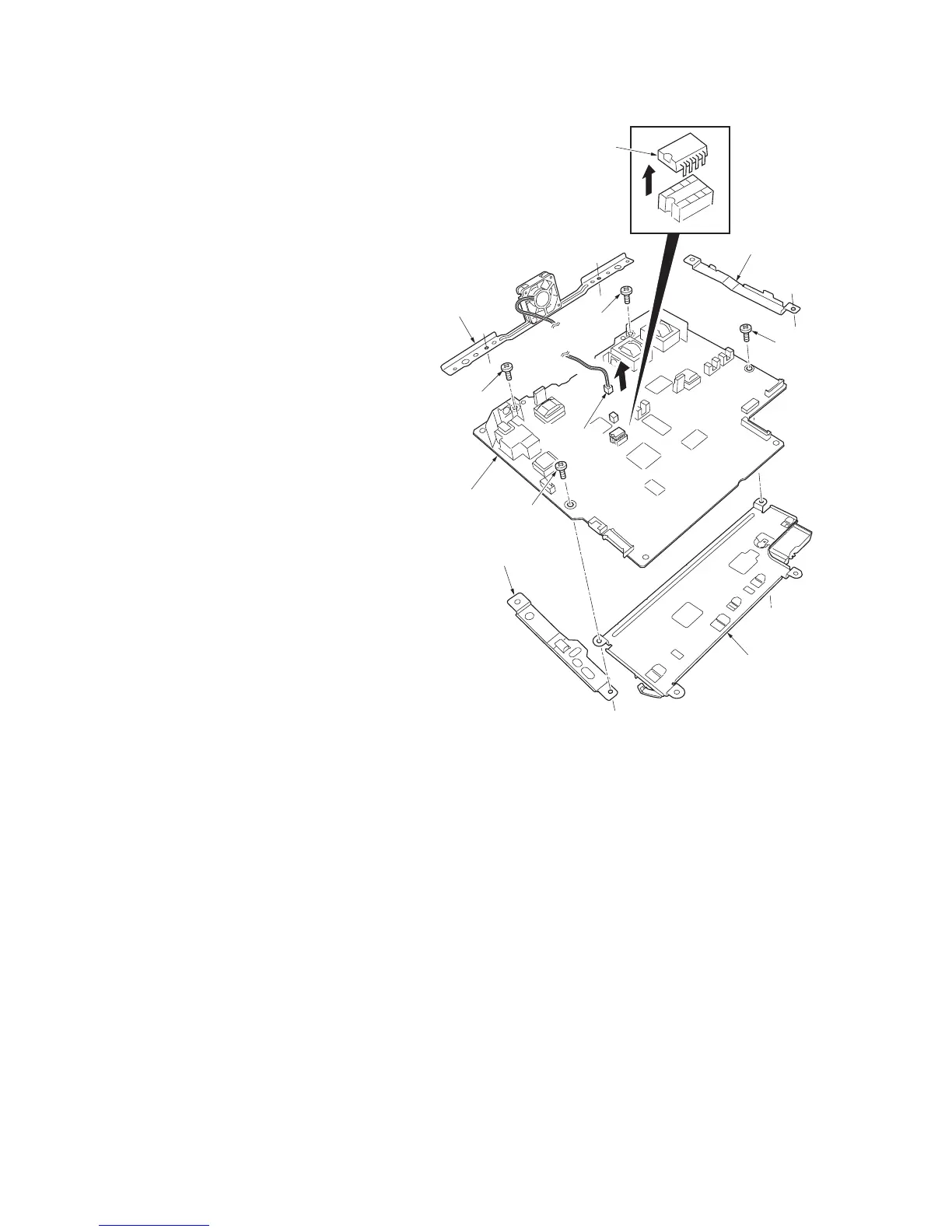

Figure 1-5-39
Connector
Engine PWB
Shield plate
HV plate
Screw-A
Screw-A
Screw-B
Screw-B
EEPROM
Engine L
grounding plate
Engine R
grounding plate
To Next Page
