Kyocera TASKalfa 406ci

To Next Page

To Previous Page

10-61

Troubleshooting > Clearing Paper Jams

Remove any jammed paper in Right Cover 1

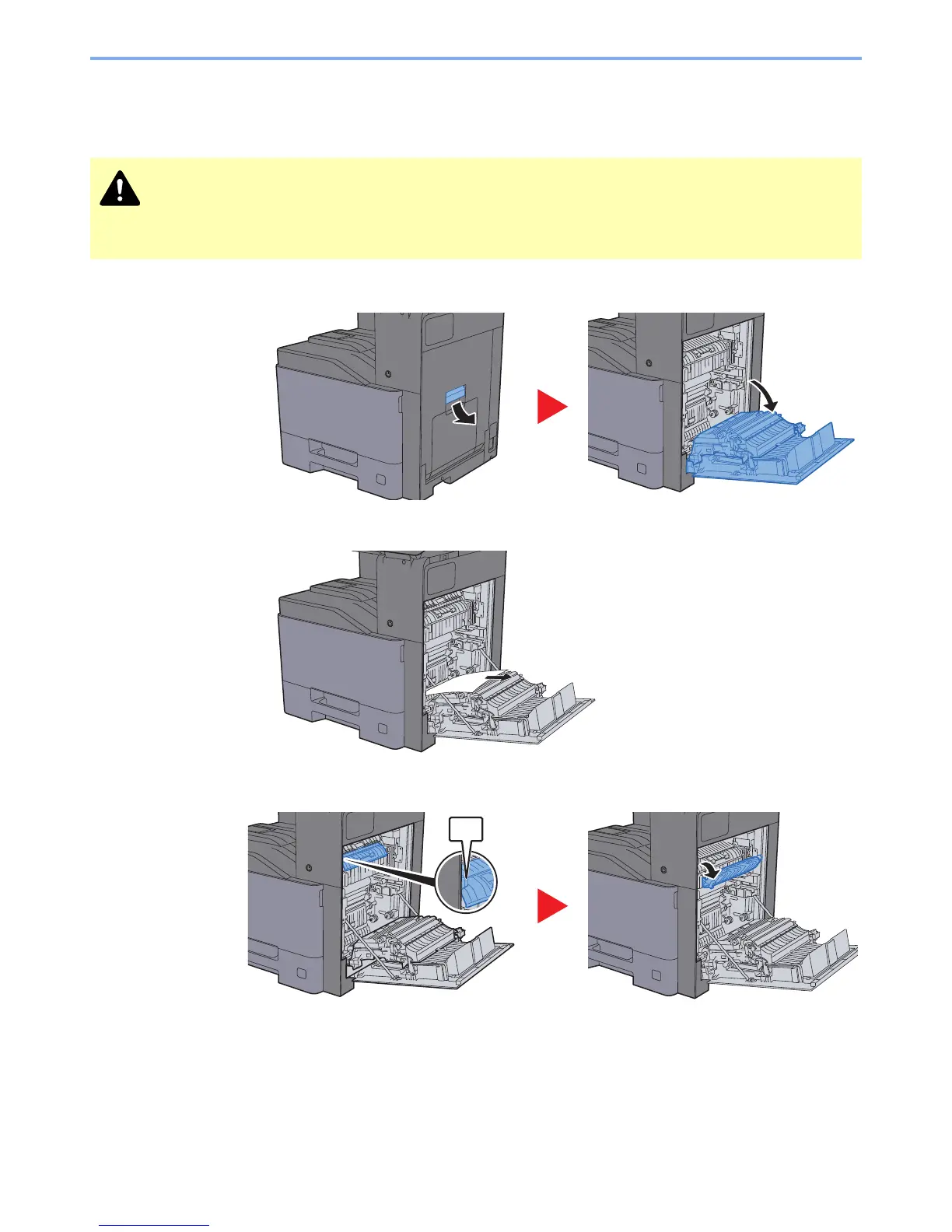

See the explanation for Right Cover 1 below.

Open Right Cover 1.

Remove any jammed paper.

Open the cover (A1).

CAUTION

The fixing unit is extremely hot. Take sufficient care when working in this area, as there is a danger of getting

burned.
