Troubleshooting > Clearing a Staple Jam

Clearing a Staple Jam

Clearing a staple jam of the Inner Finisher

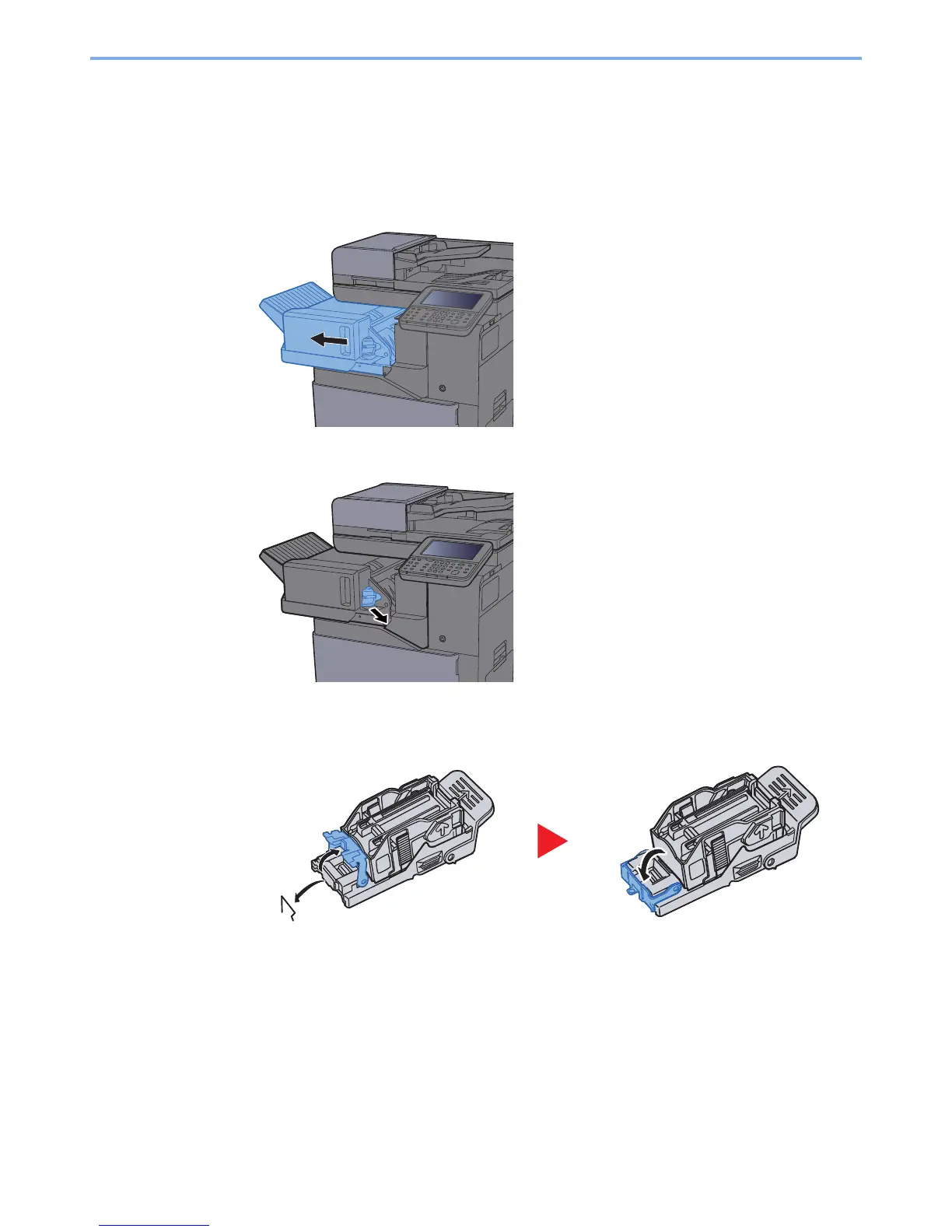

Open the inner finisher unit.

Remove the Staple Cartridge Holder.

Remove the jammed staple.
