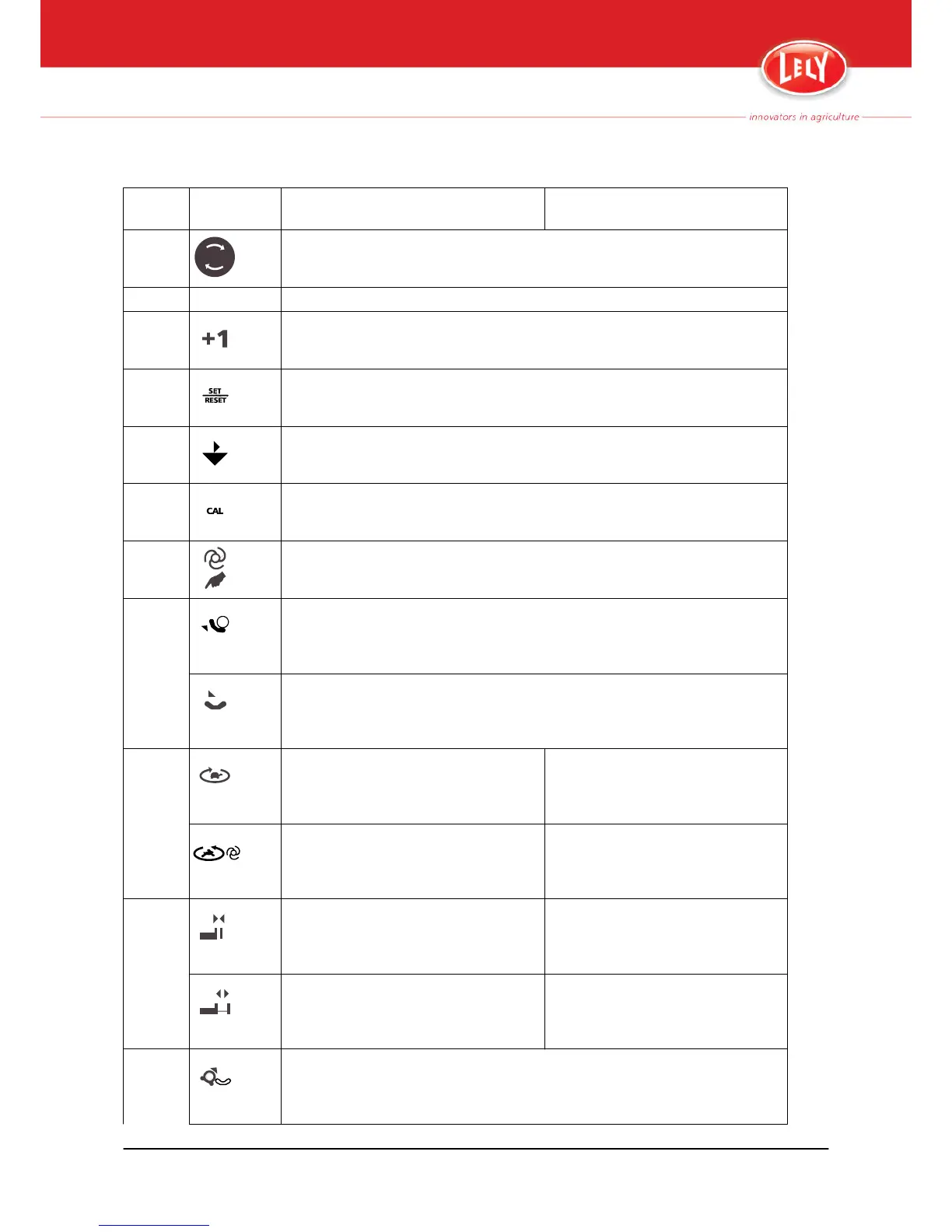

The E-Link manual controller has the following buttons:
Number Button/
switch
Auto Function Manual Function
1. Emergency stop
2. Display
3. Adds one rotation to the total number of rotations or pauses the counting of
rotations.
4. Set/reset button. Enter a number in Cal mode or resets the field bale count
and bales per hour.
5. Change display
6. Calibration button used to set the number of wraps and early warning alarm.
7. Switches between Auto or Manual mode
8.
(up)
Lifts the wrapping table to unload the bale
(down)
Lowers the wrapping table after unloading
9.
(up)
N/A Turns the wrapping table in slow
reverse
(down)
Hold down for three seconds to engage
Auto wrap
Turns the wrapping table at high
speed
10.
(up)
N/A Closes the film cutter
(down)
N/A Opens the film cutter
11.
(up)
Lift the loading arm
3-4 Operation
W-H003.1403EN
