4.3 Adjust the bearings adjusting plate
Procedure
1. Release the fasteners of the adjusting plate and bearings at the right
side of the Attis.
2. Rotate the adjusting plates to the required size (A, B or C) for the
correct tension on the wrapping strings.
Make sure the adjustment keep the wrapping rollers parallel to each
other.
3. Tighten the bolts of the adjusting plate.
4. Tighten the roller bearings against the adjusting plate.

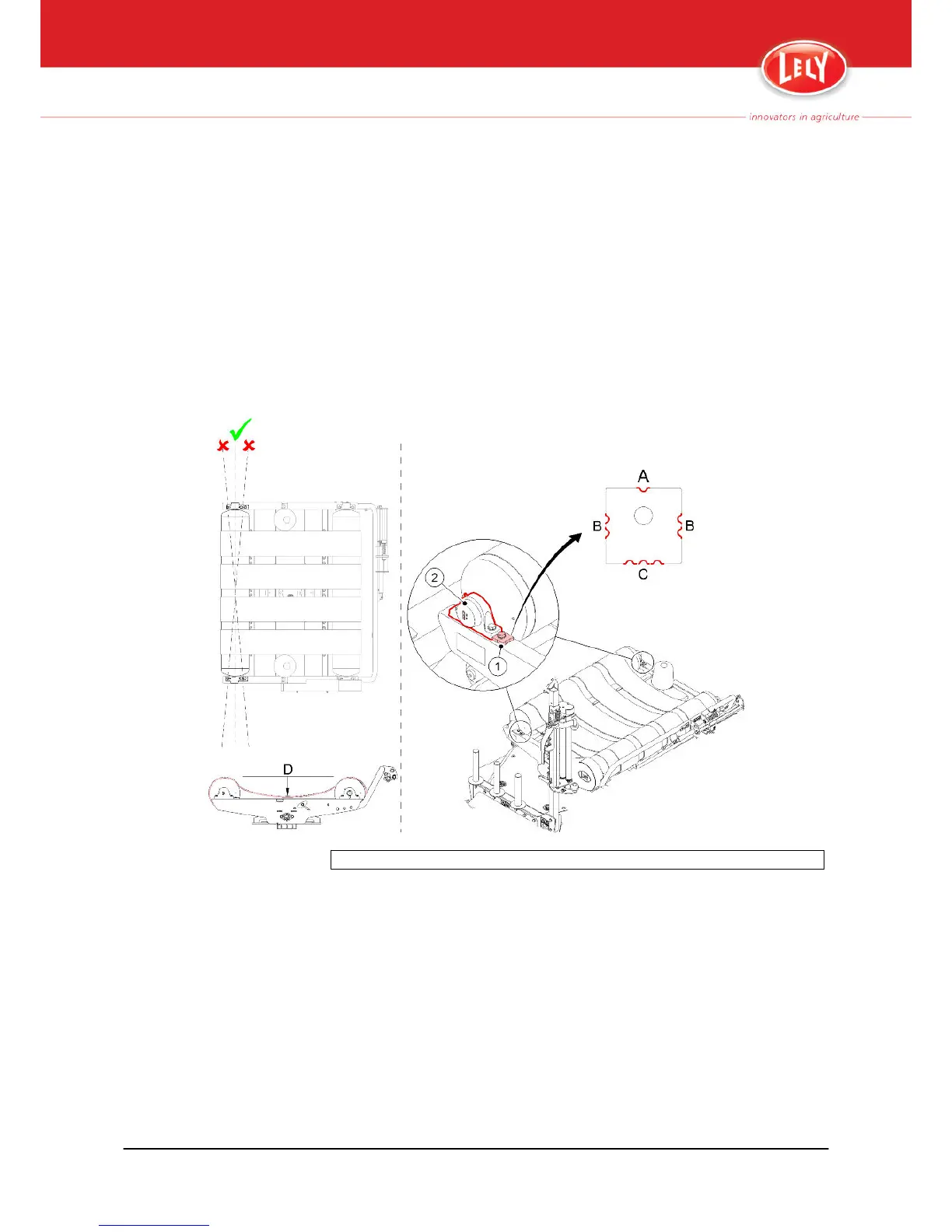

1. Adjusting plate - 2. Bearings - A. 16 mm - B. 22 mm - C. 28 mm - D. Correct tension
Figure 27. Adjust the bearings adjusting plate
4-4
Operation adjustments
W-H003.1403EN
