5.3 Corrective maintenance
5.3.1 Replace the knife of the film cutter
Stop the tractor engine and remove the ignition key from the tractor
before you do maintenance or adjustments to the Attis.
The knife of the film cutter is sharp. Be careful when replacing the
knife.
Procedure
1. Open the film cutter
2. Remove the M10 bolt from the spring shaft of the film cutter
(2).
3. Remove the shaft and the spring from the film cutter (3).
4. Remove the two bolts from the knife holder (4).
5. Replace the old knife with a new knife and discard the old
knife.
6. Install the two bolts.
7. Install the shaft and the spring on the film cutter.
8. Install the M10 bolt on the spring shaft of the film cutter.

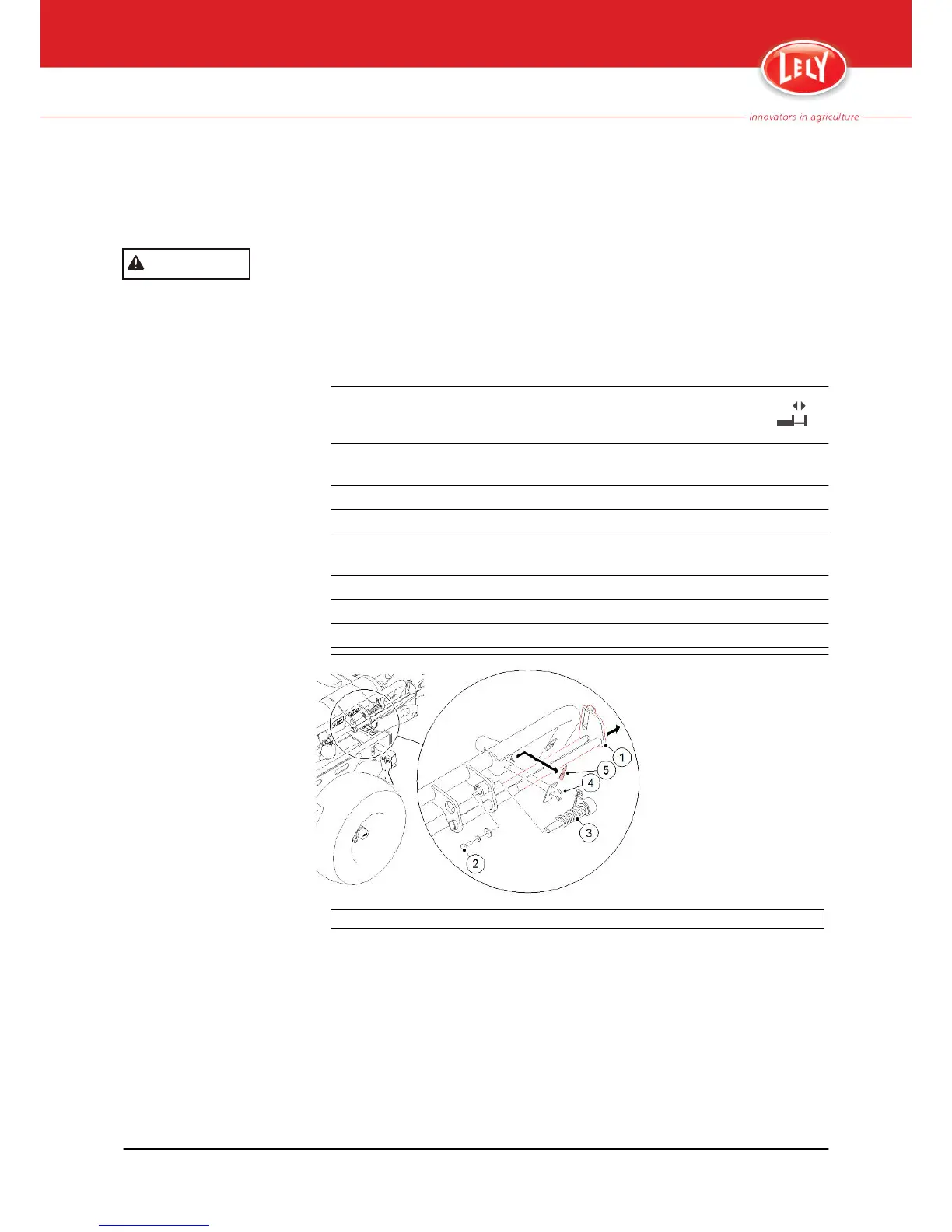

1. Film cutter - 2. Bolt - 3. Film holder - 4. Knife holder - 5. Knife
Figure 37. Replace the knife of the film cutter
WARNING
Maintenance 5-11
W-H003.1403EN
