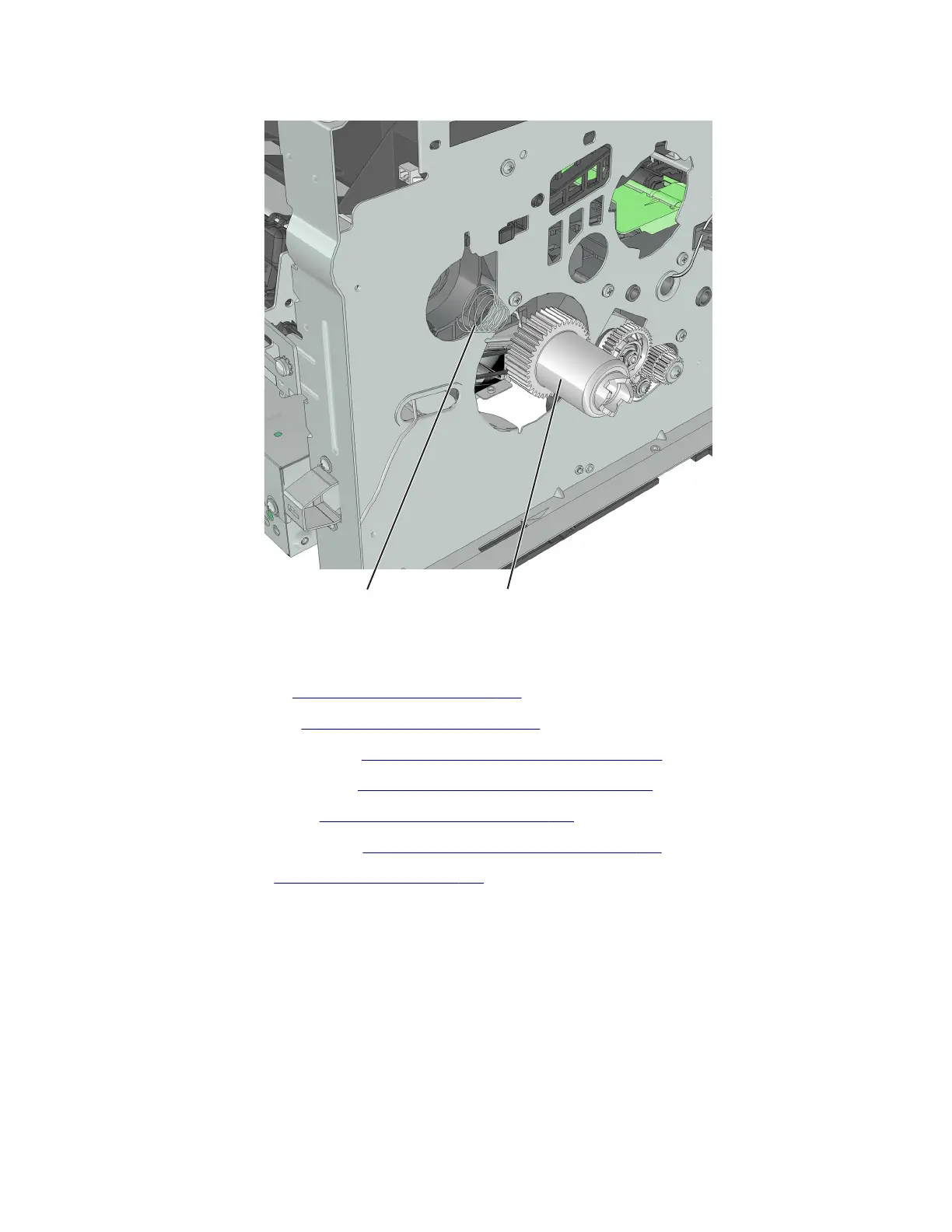

5 Remove the spring (B) and the fuser gear (C).
BC
MPF solenoid removal
1 Remove the left cover. See “Left cover removal” on page 181.
2 Remove the right cover. See “Right cover removal” on page 194.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 257.
4 Remove the main drive gearbox. See “Main drive gearbox removal” on page 182.
5 Remove the power supply. See “Power supply removal” on page 240.
6 Remove the power supply shield. See “Power supply shield removal” on page 241.
7 Remove the duplex. See “Duplex removal” on page 242.
8 Disconnect the MPF solenoid cable from the controller board.
9 Remove the screw (A).
4514-6xx
Repair information
184
