Lexmark MS510 - MPF Gearbox Removal

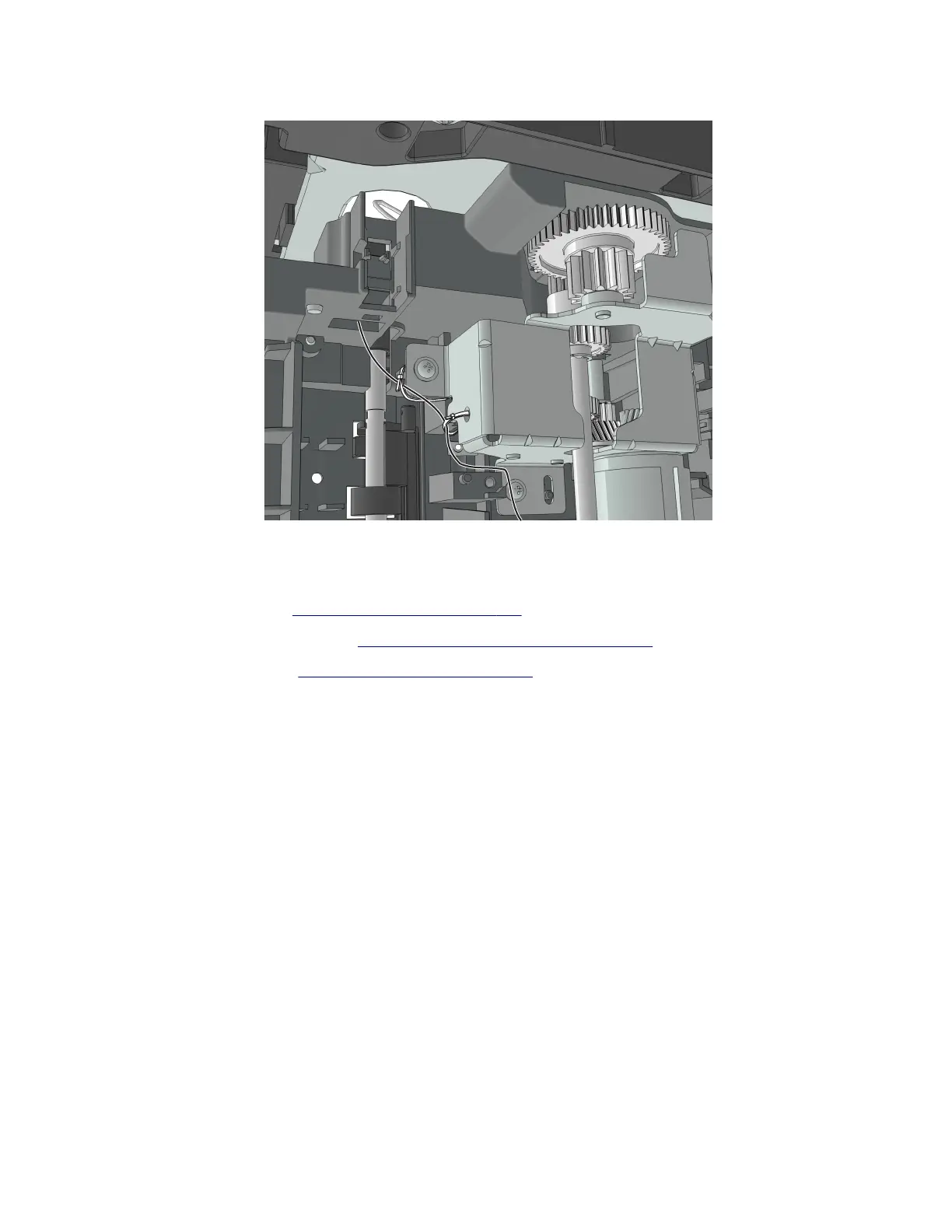

e Secure the cable at the pick/lift motor gearbox using cable ties. Cut off any excess cable tie.
MPF gearbox removal
1 Remove the left cover. See “Left cover removal” on page 181.
2 Remove the main drive gearbox. See “Main drive gearbox removal” on page 182.
3 Remove the front door. See “Front door removal” on page 232.
4514-6xx
Repair information
187
