Lexmark MS510 - Index Sensor Removal; Toner Density Sensor Removal

Index sensor removal
1 Remove the left cover. See “Left cover removal” on page 181.
2 Remove the right cover. See “Right cover removal” on page 194.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 257.
4 Remove the power supply. See “Power supply removal” on page 240.
5 Remove the power supply shield. See “Power supply shield removal” on page 241.
6 Remove the duplex. See “Duplex removal” on page 242.
7 Disconnect the cable JINDEX1 from the system board.

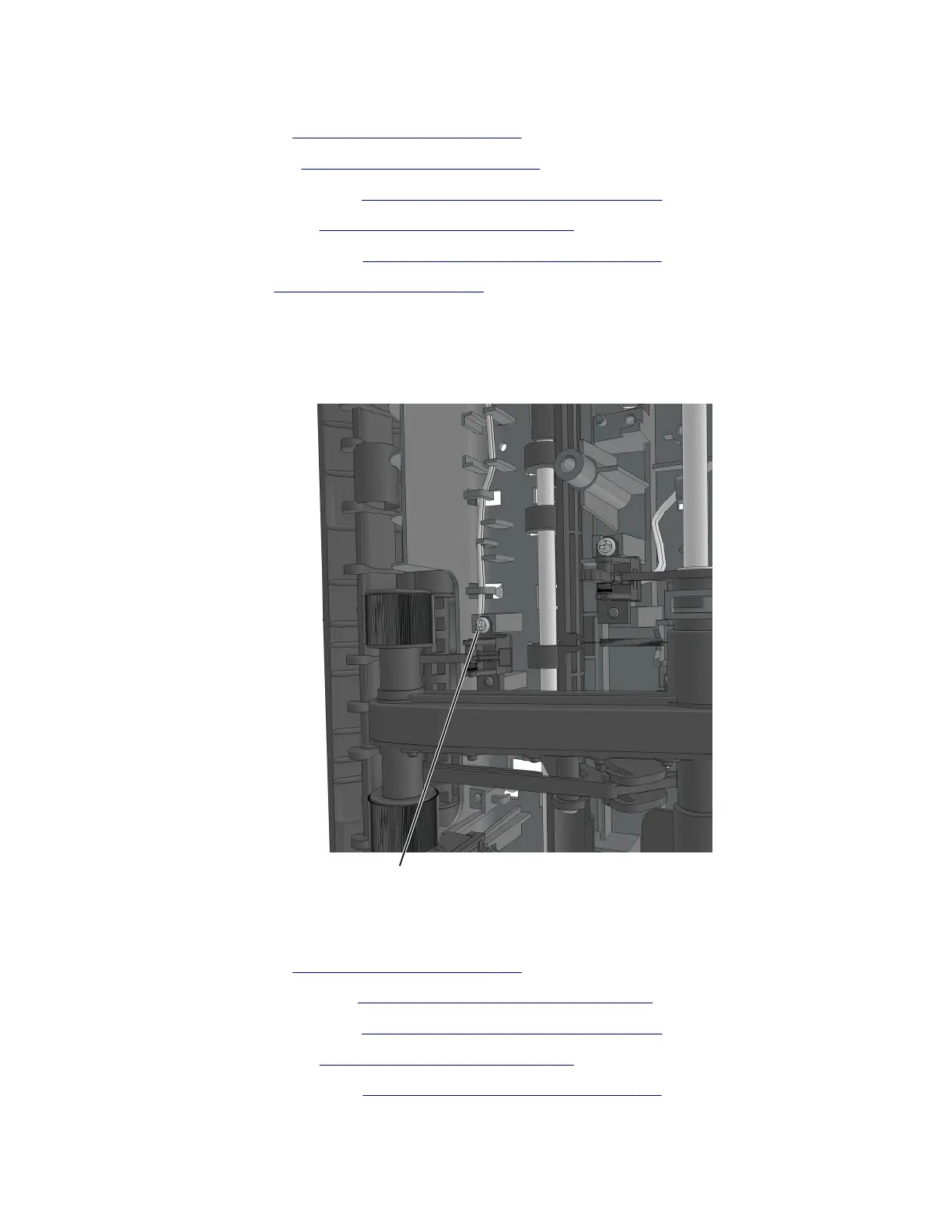

8 Remove the screw (A).
9 Route off the cable, and then remove the index sensor.
A
Toner density sensor removal
1 Remove the left cover. See “Left cover removal” on page 181.
2 Remove the main drive gearbox. See “Main drive gearbox removal” on page 182.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 257.
4 Remove the power supply. See “Power supply removal” on page 240.
5 Remove the power supply shield. See “Power supply shield removal” on page 241.
4514-6xx
Repair information
246
