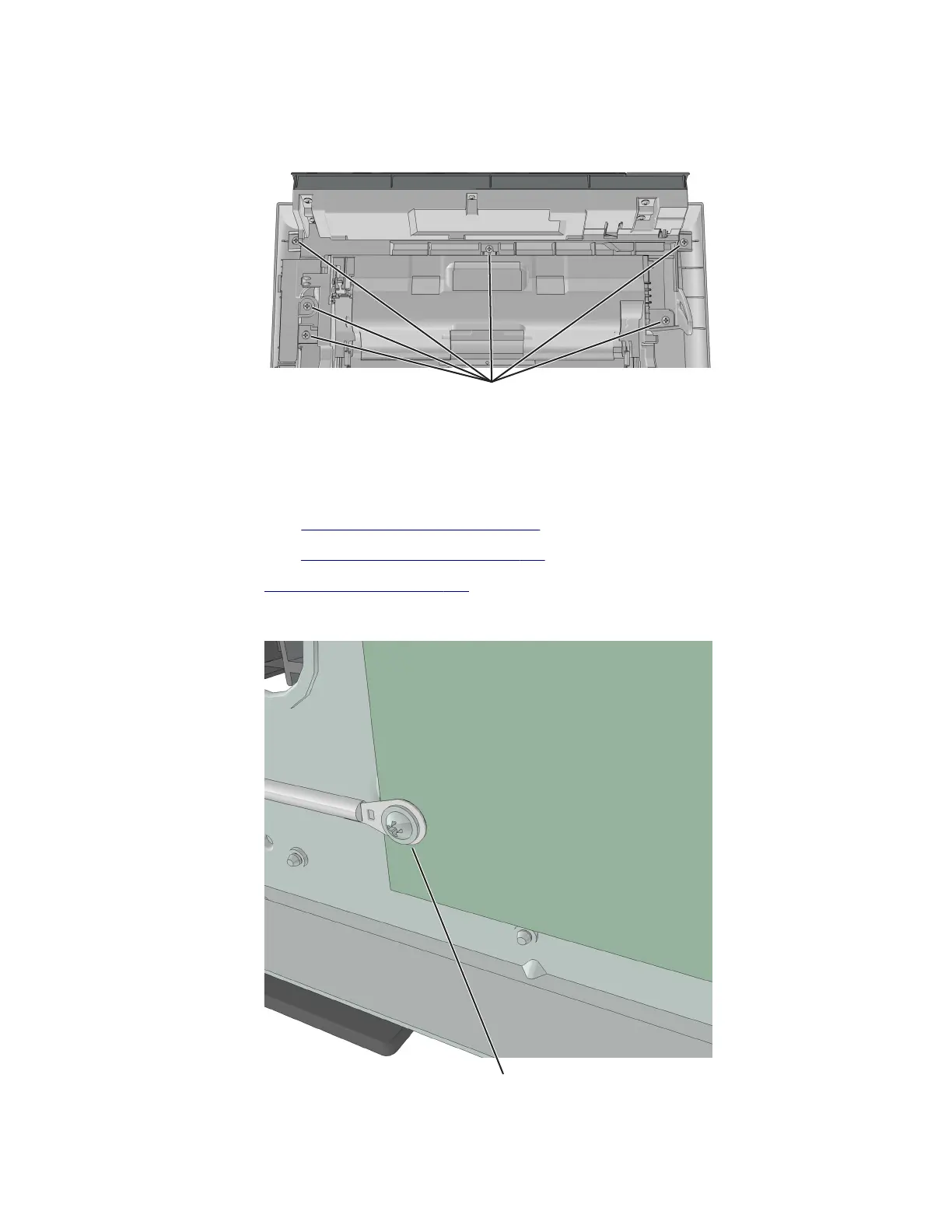

5 Remove the six screws (D) securing the nameplate.
D
Control panel assembly removals
Control panel assembly removal (MS510dn and MS610dn)
1
Remove the right cover. See “Right cover removal” on page 194.
2 Remove the nameplate. See “Nameplate removals” on page 216.
3 Remove the bezel. See “Bezel removals” on page 214.
4 Remove the screw (A) securing the ground connector to the controller board.
A
4514-6xx
Repair information
218
