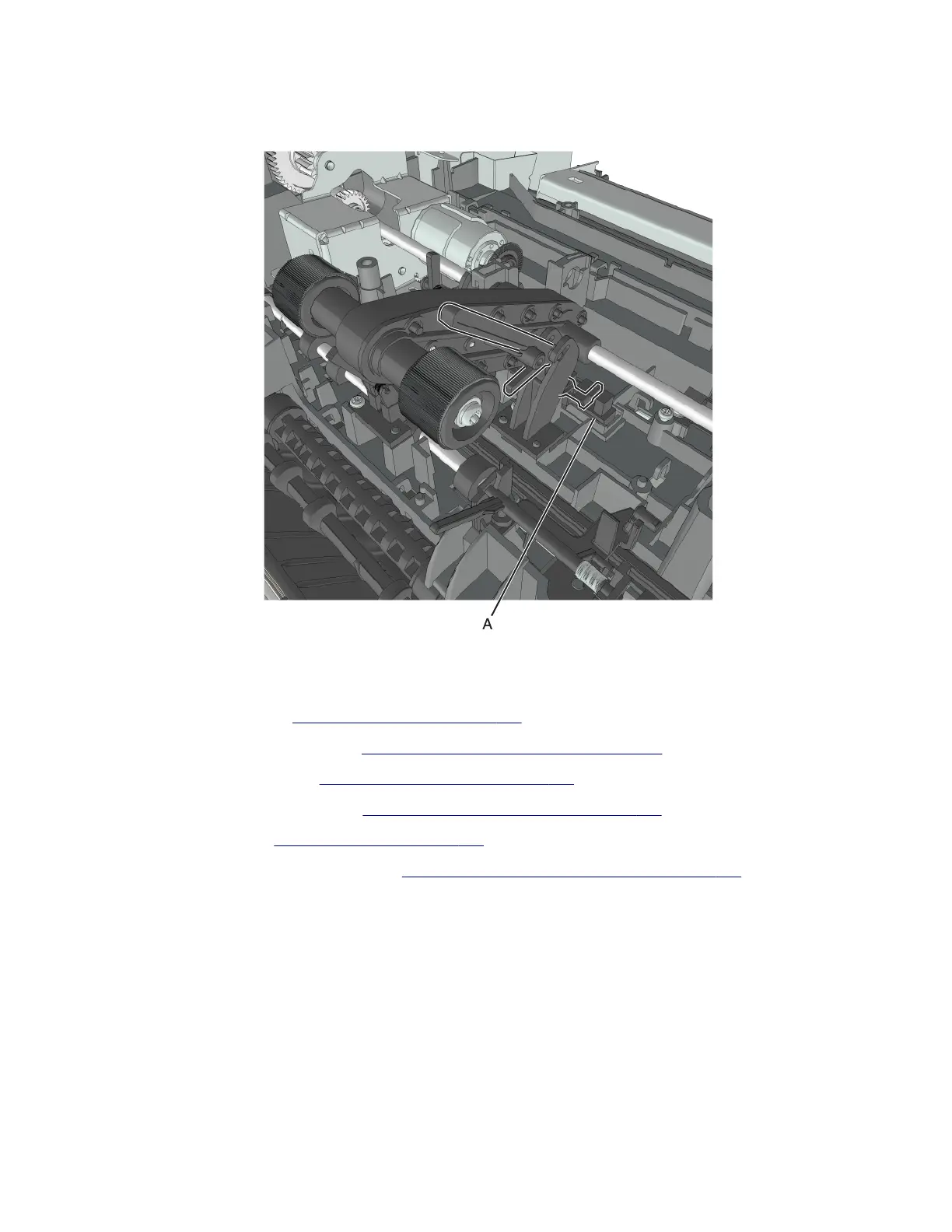

2 The protrusion on the ACM must align with the notch on the sensor flag.
3 The sensor flag must align with the media present sensor (A).
ACM assembly removal
1 Remove the left cover. See “Left cover removal” on page 181.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 257.
3 Remove the power supply. See “Power supply removal” on page 240.
4 Remove the power supply shield. See “Power supply shield removal” on page 241.
5 Remove the duplex. See “Duplex removal” on page 242.
6 Remove the media present sensor flag. See “Media present sensor flag removal” on page 249.
4514-6xx
Repair information
253
