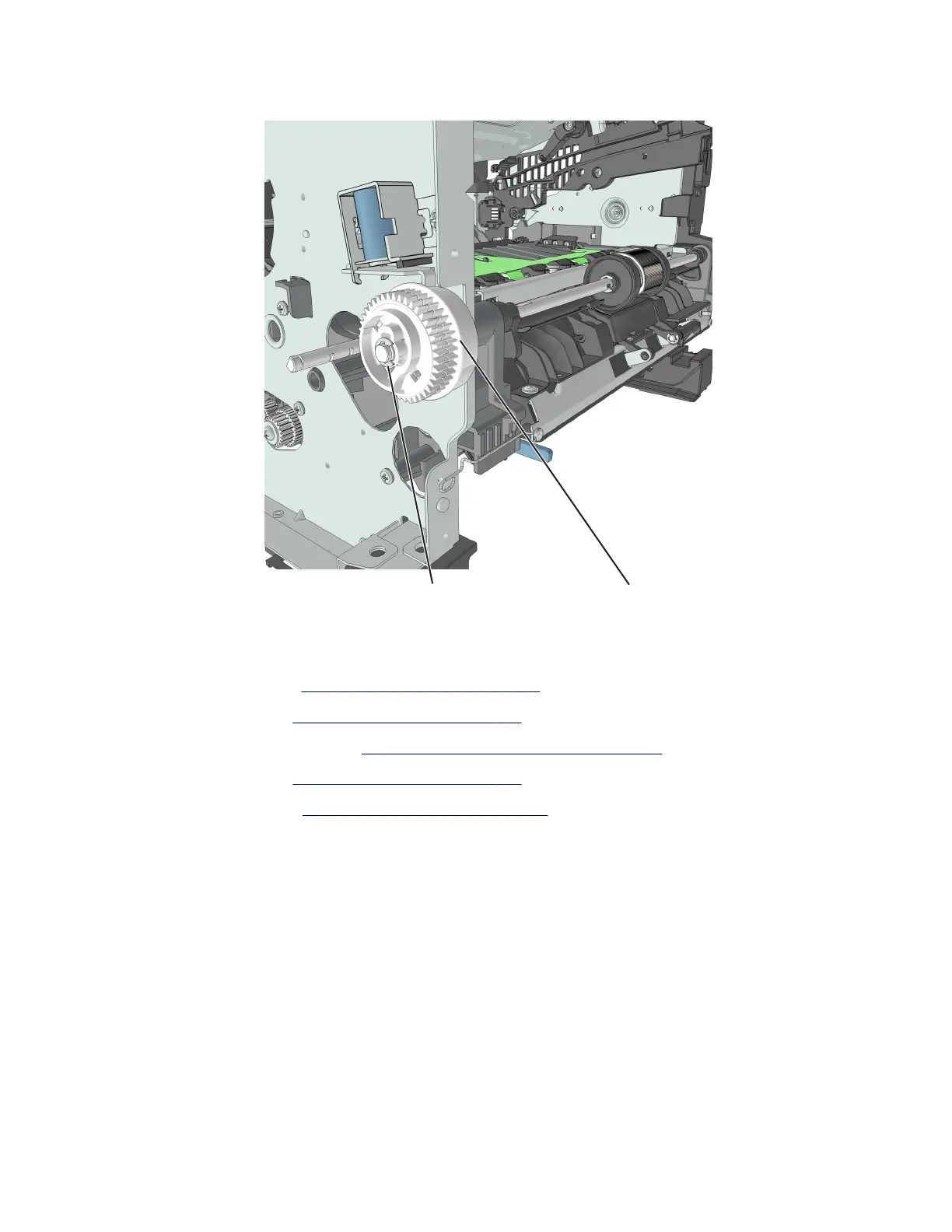

8 Remove the E-clip (E), and then remove the MPF sector gear (F).
EF
Reverse solenoid removal
1 Remove the right cover. See “Right cover removal” on page 194.
2 Remove the left cover. See “Left cover removal” on page 181.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 257.
4 Remove the top cover. See “Top cover removal” on page 264.
5 Remove the cooling fan. See “Cooling fan removals” on page 196.
6 Disconnect cable JDRSOL1 from the controller board.
