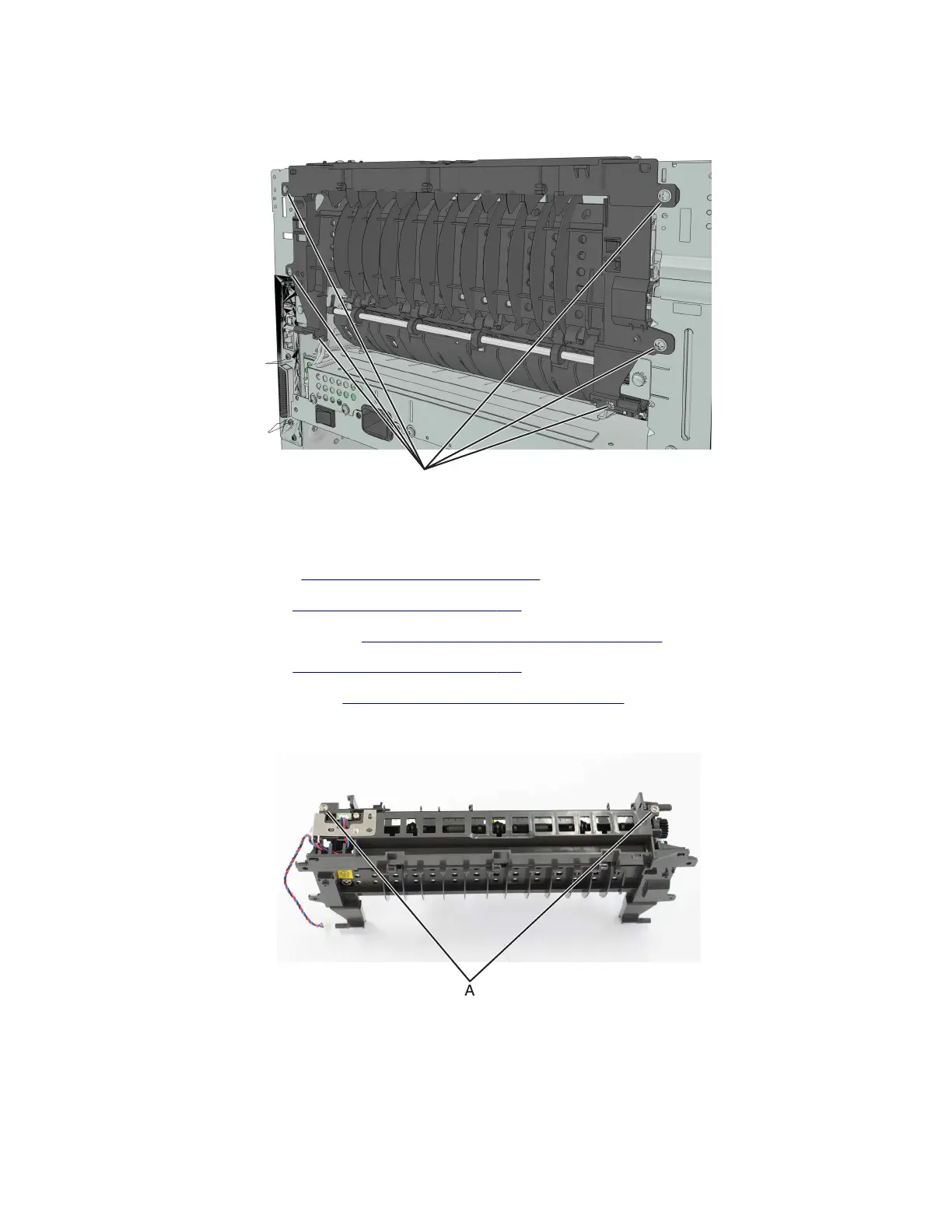

7 Remove the six screws (B) securing the redrive assembly.
B
Redrive shaft removal
1 Remove the right cover. See “Right cover removal” on page 194.
2 Remove the left cover. See “Left cover removal” on page 181.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 257.
4 Remove the top cover. See “Top cover removal” on page 264.
5 Remove the redrive assembly. See “Redrive assembly removal” on page 260.
6 Remove the two screws (A), and then remove the top of the redrive assembly.
4514-6xx
Repair information
261
