c Install the right front mount to the printer.
Front access cover removal
1 Remove the right cover. See “Right cover removal” on page 194.
2 Remove the front door. See “Front door removal” on page 232.
3 Remove the nameplate. See “Nameplate removals” on page 216.
4 Remove the MPF assembly. See “MPF assembly removal” on page 227.
5 Remove the bezel. See “Bezel removals” on page 214.
6 Remove the control panel assembly. See “Control panel assembly removals” on page 218.

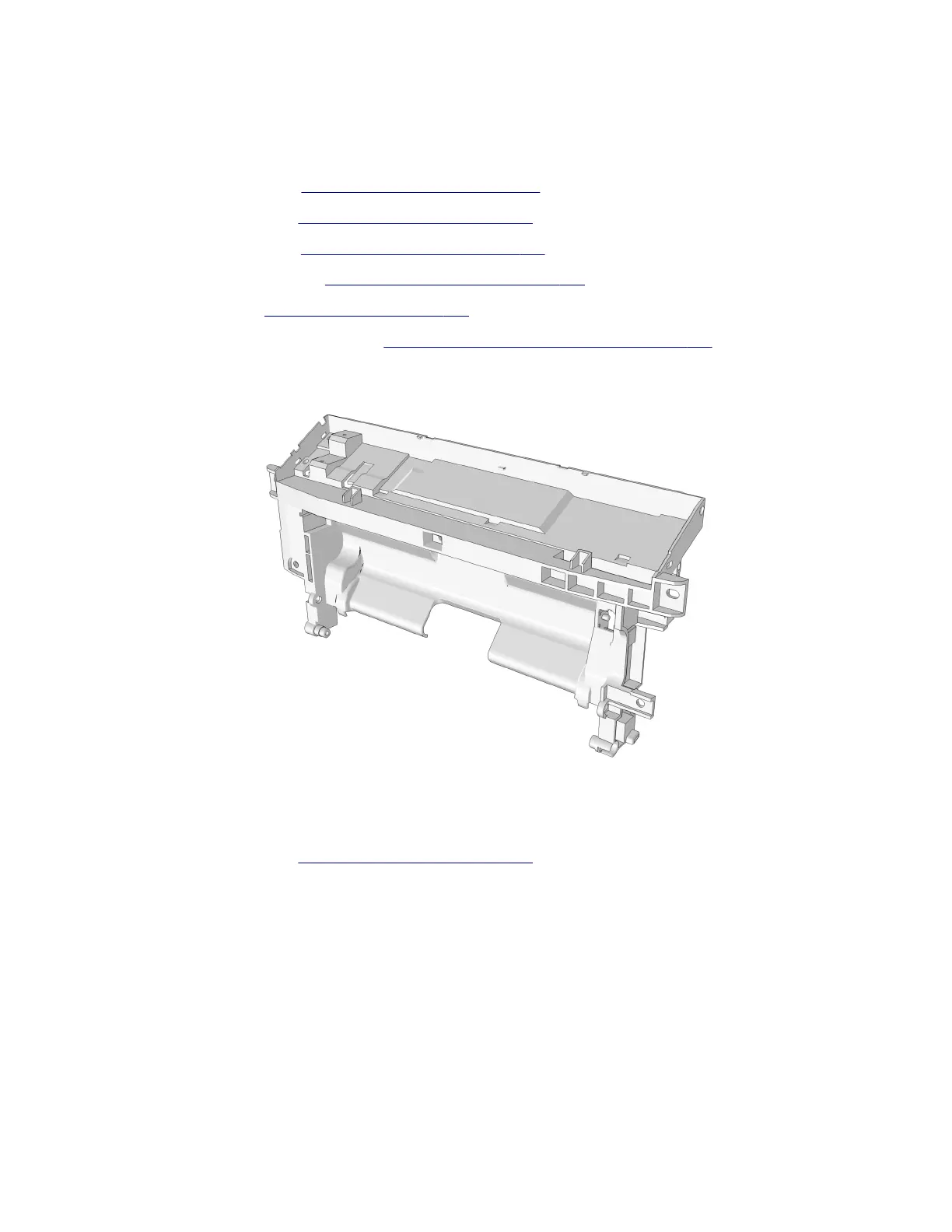

7 The front access cover remains.
Front door sensor removal
1 Remove the front door. See “Front door removal” on page 232.
2 From under the right front mount, remove the screw (A).
Note: Use a #0 Phillips screwdriver.
4514-6xx
Repair information
235
