Lexmark MS510 - Cooling Fan Duct Removal; Cooling Fan Removals

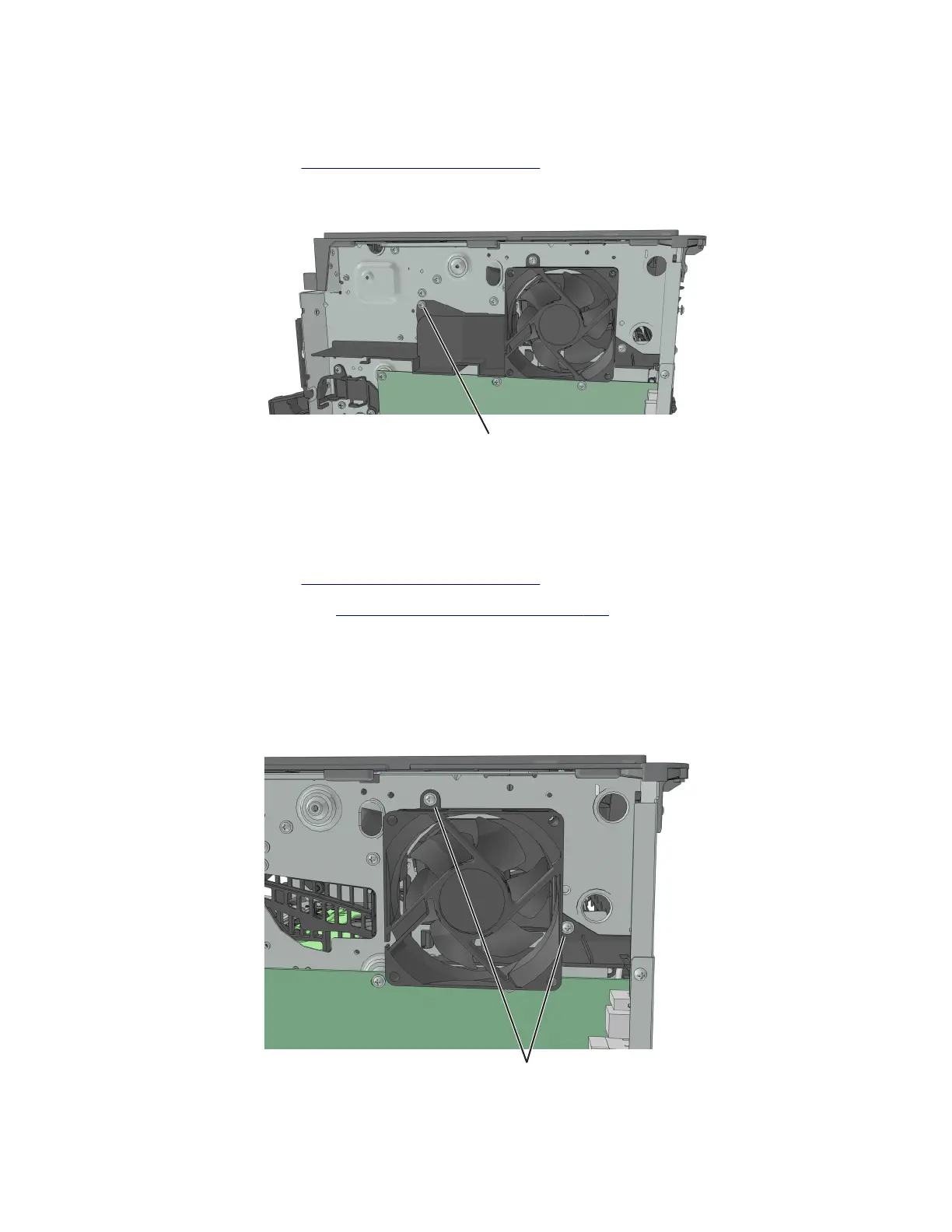

Cooling fan duct removal
Note: This is not a FRU.
1 Remove the right cover. See “Right cover removal” on page 194.
2 Remove the screw (A), and then remove the cooling fan duct.
A
Cooling fan removals
Cooling fan removal (MS510dn and MS610dn)
1
Remove the right cover. See “Right cover removal” on page 194.
2 Remove the cooling fan duct. See “Cooling fan duct removal” on page 196.
3 Disconnect the cable JFAN1 from the controller board.
4 Remove the two screws (A), and then remove the fan and the fan mount.
A
4514-6xx
Repair information
196
