Lexmark MS510 - Page 245

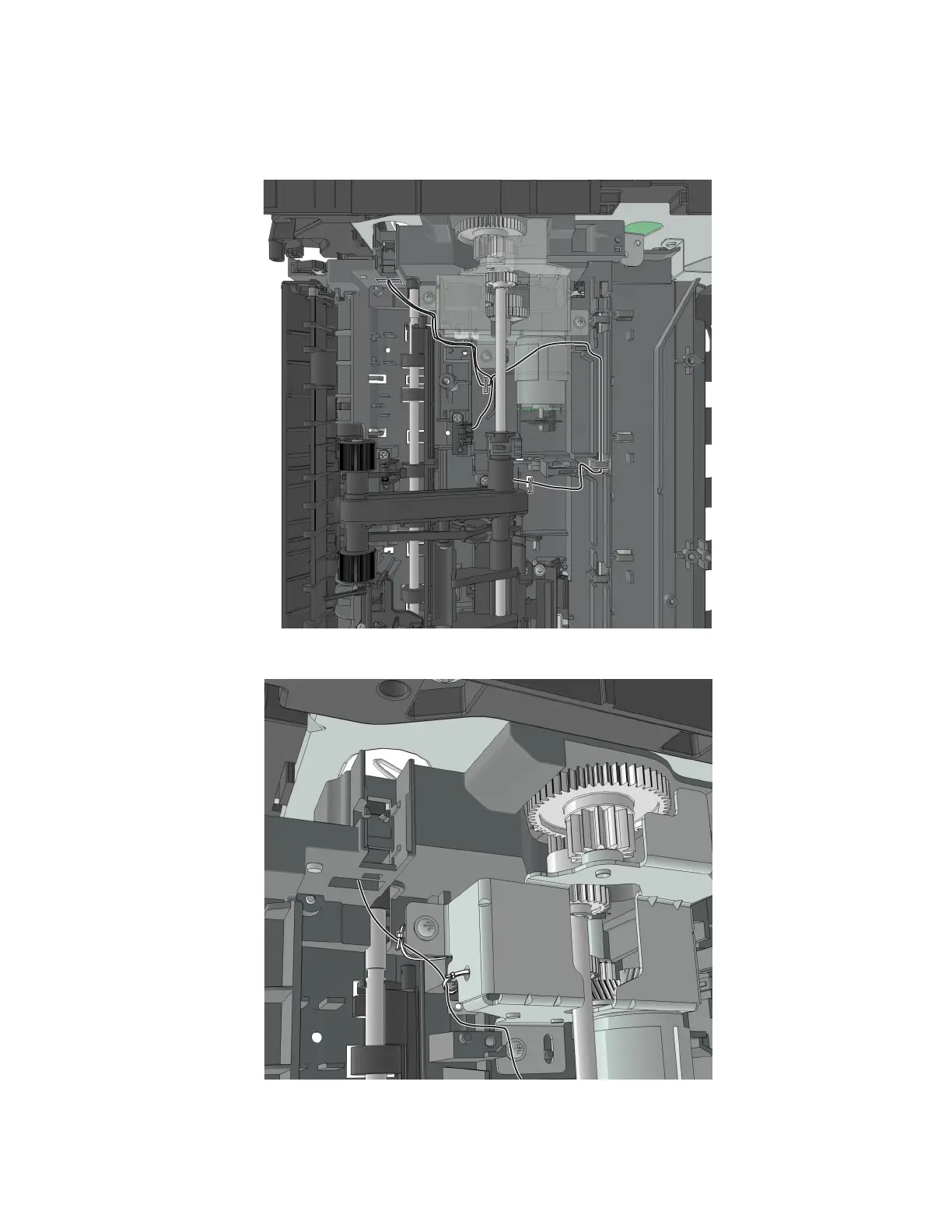

Installation notes:
a Install the duplex sensor, followed by the input sensor.
b Route the cable using the new path.
c Secure the cable at the pick/lift motor gearbox using cable ties. Cut off any excess cable tie.
4514-6xx
Repair information
245
