2.3.4. RS-232 / RS-422 control port
Lightware standalone DVI-Plus matrices can be remote controlled through industry
standard 9 pole D-SUB female connector located on the rear panel of the unit. The router
can be ordered with RS-232 or RS-422 control port.

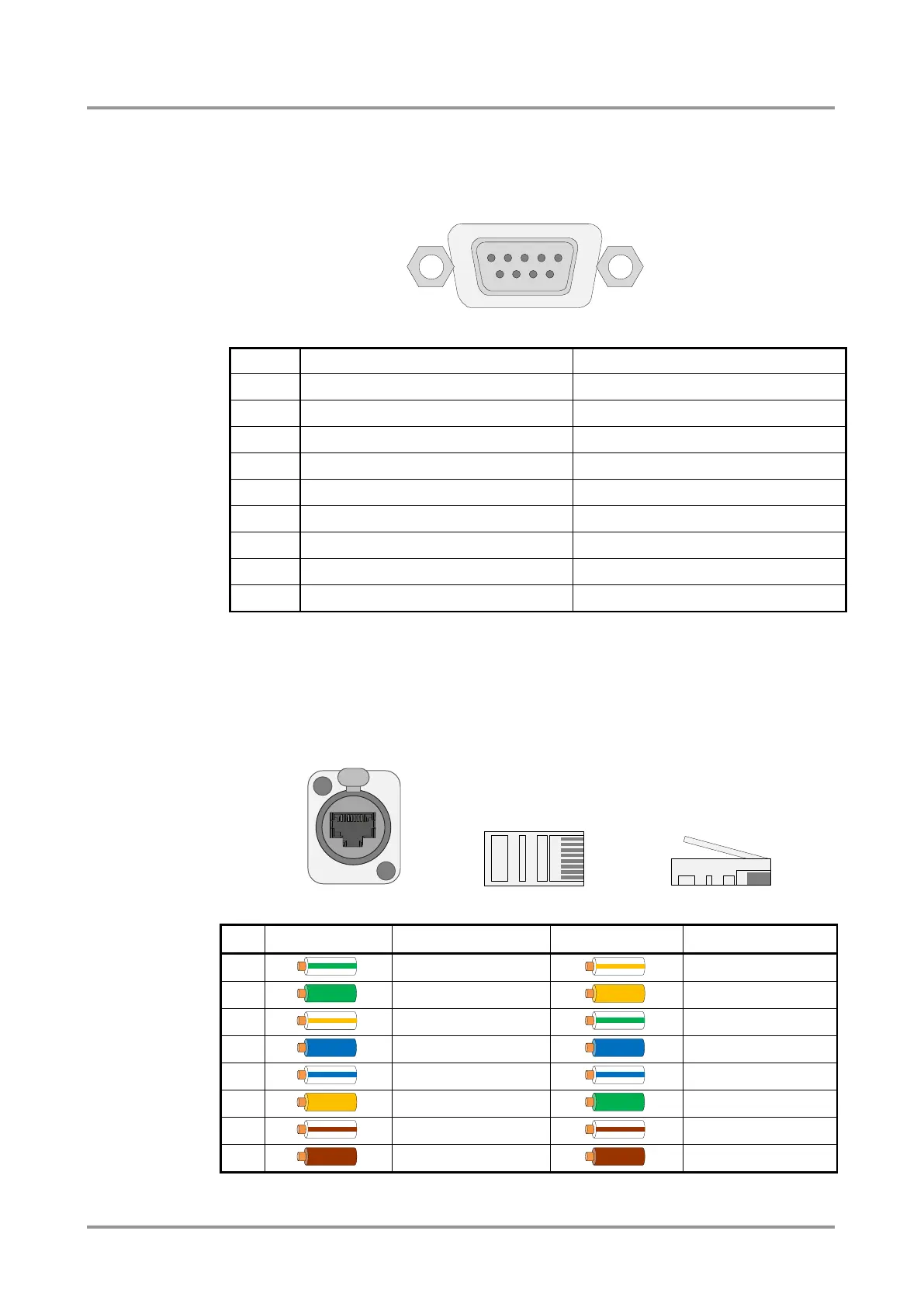

Figure 2-3. D-SUB 9 pole female connector (DE9F)
Pin nr.
RS-232
RS-422
1
NC - non connected
TX- data transmit complement
2
TX data transmit (output)
TX+ data transmit true
3
RX data receive (input)
RX+ data receive true
4
DTR (internally connected to Pin 6)
RX- data receive complement
5
GND signal ground (shield)
GND signal ground (shield)
6
DSR (internally connected to Pin 4)
NC - non connected
7
RTS (internally connected to Pin 8)
NC - non connected
8
CTS (internally connected to Pin 7)
NC - non connected
9
NC - non connected
NC - non connected
Table 2-2. D-SUB 9 pole pin assignments
2.3.5. Ethernet port
The matrix can be remote controlled via Ethernet as well. The matrix can be connected to
a LAN hub, switch or router with a UTP patch cable. If connecting to a computer directly, a
cross UTP cable has to be used! The robust Neutrik EtherCON connector ensures reliable
connection, however normal RJ45 connectors can be used as well.
The recommended termination is based on TIA/EIA T 568 A or TIA/EIA T 568 B standards.
Pin
TIA/EIA T568 A
color and name
TIA/EIA T568 B
color and name
1
white/green stripe
white/orange stripe
2
green solid
orange solid
3
white/orange stripe
white/green stripe
4
blue solid
blue solid
5
white/blue stripe
white/blue stripe
6
orange solid
green solid
7
white/brown stripe
white/brown stripe
8
brown solid
brown solid
Table 2-3. Recommended termination of TP cables
