Standalone MX DVI-Plus family
User’s Manual
Section 5. Software control Using Lightware Device Controller (LDC) Page 39 / 89
Fix IP configuration
In this case, connected device has an IP address configuration set up by the
user/administrator. Depending on modified settings, you might need to restart the device
and the Control Software. Always press the Apply settings button to save changes.
Info: Load default button restores the default network settings (fix IP) to the device: fix IP
Address: 192.168.254.254, Subnet Mask: 255.255.0.0, Default Gateway: 0.0.0.0.
TCP Port Configuration
Devices can be accessed via this TCP/IP port number with TCP connection. Port number
can be modified to any number between 1025 and 65535 except the followings:
9999, 14000 - 14009, 30704, and 30718.
To use a matrix with Barco Encore set port to 23.
To use a matrix with Vista Spyder set port to 10001.
Always press the Apply settings button to save changes.
5.9.2. Device information tab
Basic information are displayed about the device in this menu: Device type with serial
number and installed cards’ type with firmware and hardware version.

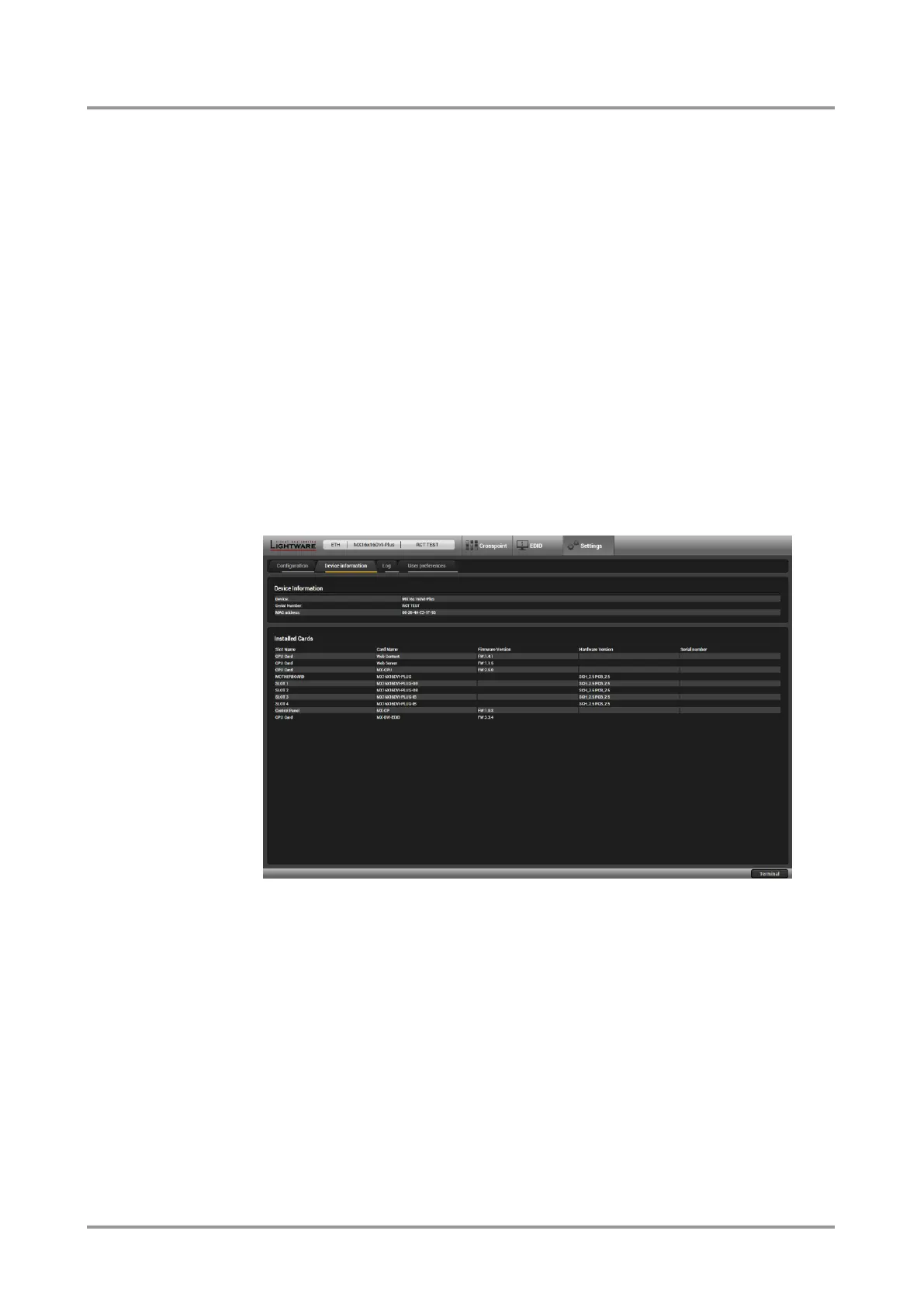

Figure 5-8. Device information tab
