6.2. EDID menu
By clicking on the EDID MANAGEMENT menu, the EDID Router page appears.
When the user enters the menu first, the whole EDID list is being downloaded from the
matrix. It may take up to 40 seconds for the first time. After the list is downloaded, the
current status of the router’s EDID is shown in the three boxes.
The Emulated EDID list contains the resolutions and the vendor names of the EDID
reported to the source for each input separately.
The Last attached Monitor's EDID list contains the resolutions and vendor names of the
display devices connected to matrix switcher's output.
The Factory EDID List shows the factory memory locations (01# - 50#) with
preprogrammed EDID.
The User EDID List shows the memory locations (51# - 100#) which can be used by the
user to save custom EDIDs.

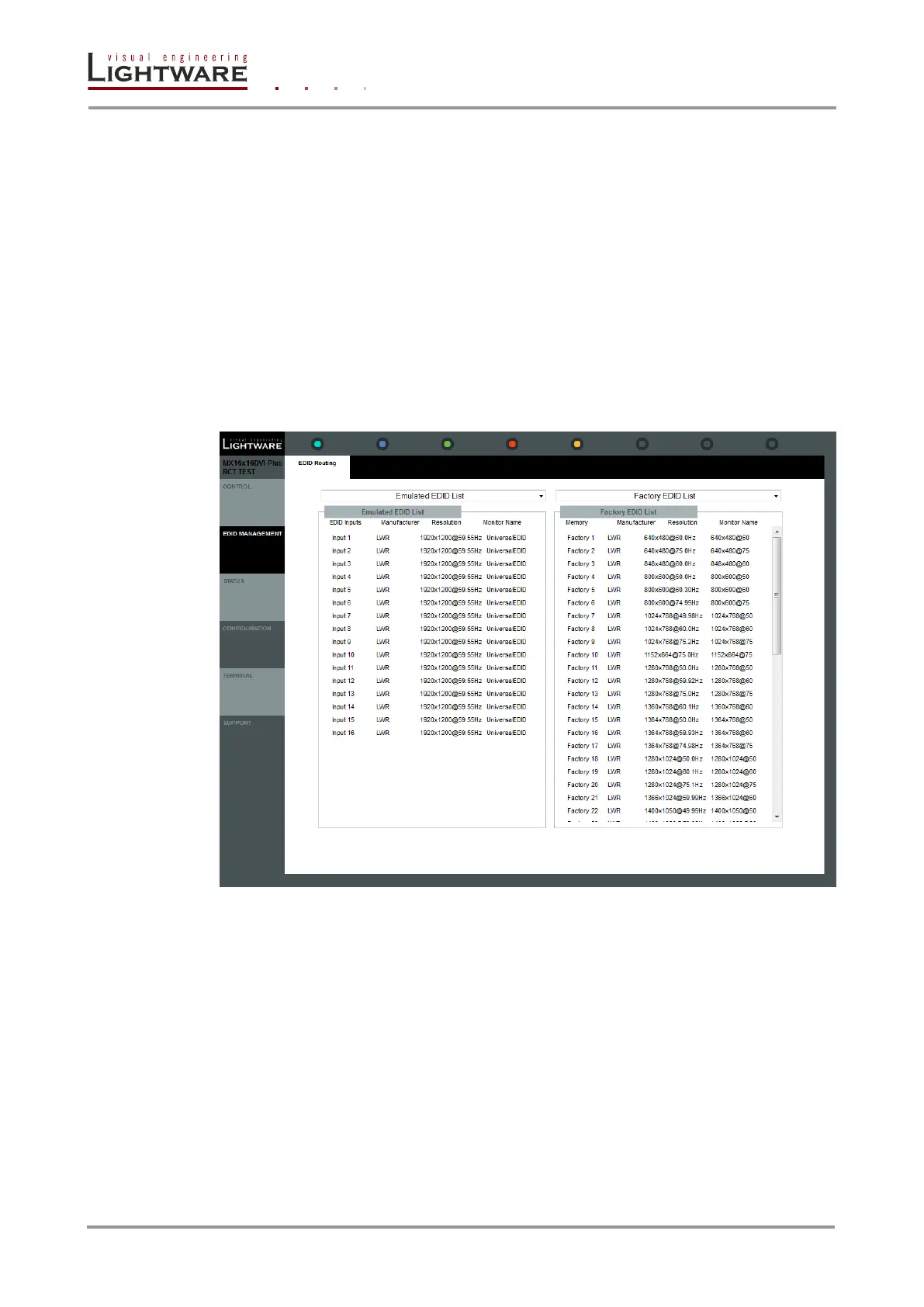

Figure 6-3. EDID lists
6.2.1. Change emulated EDID at one or all inputs
Step 1. Select the Emulated EDID List in one of the window areas in the drop down list.
Step 2. Select the desired EDID List in another window area in the drop down list.
Step 3. Select the desired EDID from this list with a left mouse click, a popup message
appears. (Memory location, manufacturer, Resolution and Monitor name of the
selected EDID)
Step 4. Click on the desired memory location in the Emulated EDID List window, or the
“Switch to all input” button. Now the EDID has been changed on selected input. If
the EDID changing was successful a reply message will be appeared on the bottom
of the page.
Step 5. Click on the “Cancel” button to exit EDID changing.
