Operation 4
Loading / Transporting
WARNING
Crane loading may cause damage to the tilt cylin-
ders and the cover sheet on the counterweight.
Retract the lift mast, retract the tilt cylinders as far
as the stop and lift the truck in such a way that it
hangs at an angle towards the front.

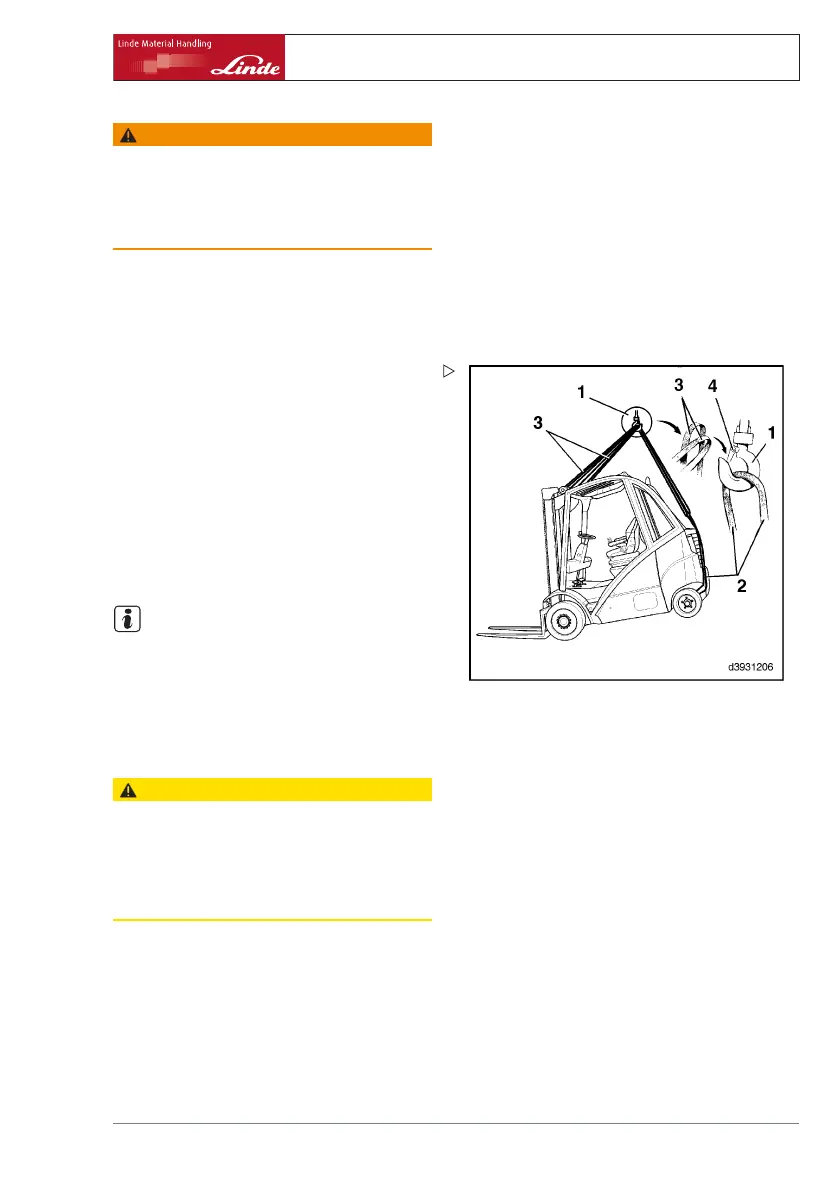

¾ Attach round slings to the suspension
points.
There is no special marking for the suspension
positions on the truck.
¾ Place the round sling (2) (min. load ca-
pacity: 4000 kg) around the bottom of the
counterweight.
¾ Use edge protectors as a safeguard from
sharp edges on traverse.
¾ Place the round sling (3) (min. load capac-
ity: 4000 kg) around the bridge piece on the
outer mast of the lift mast.
¾ Insert all ends into crane hook (1).
¾ Make sure that the safety lock (4) is closed.
NOTE
During lifting, the lifting gear should not touch
the overhead guard, the cover sheet on the
counterweight and any additional equipment
attached.
Crane loading with lifting eyes
CAUTION
If the crane lifts pulling at an angle, the crane eyes
may break off.
Crane loading with lifting eyes should only be
carried out with the appropriate lifting gear (3),
whereby the chains (2, 6) lead up vertically from the
lifting eyes (1, 7).
