Operation 4
Standard equipment
Joystick with central lever operation
WARNING
There is a risk of becoming trapped
between parts due to the moving lift
mast or the attachment.
Therefore, never reach into or enter
the lift mast or the area between the
lift mast and the truck.
The lifting system and attachments
should only ever be used for their
proper purpose.
Drivers must be instructed in the
handling of the lifting system and
attachments.
Bear the maximum lift height in mind.
NOTE
When working with a shovel, see "Using the
truck during shovel operation".
Operating the lift and tilt attachments
NOTE
On the version with central lever operation,
moving the joystick to an intermediate position
(approx. 45°) will activate both functions at the
same time (e.g. lifting and tilting).

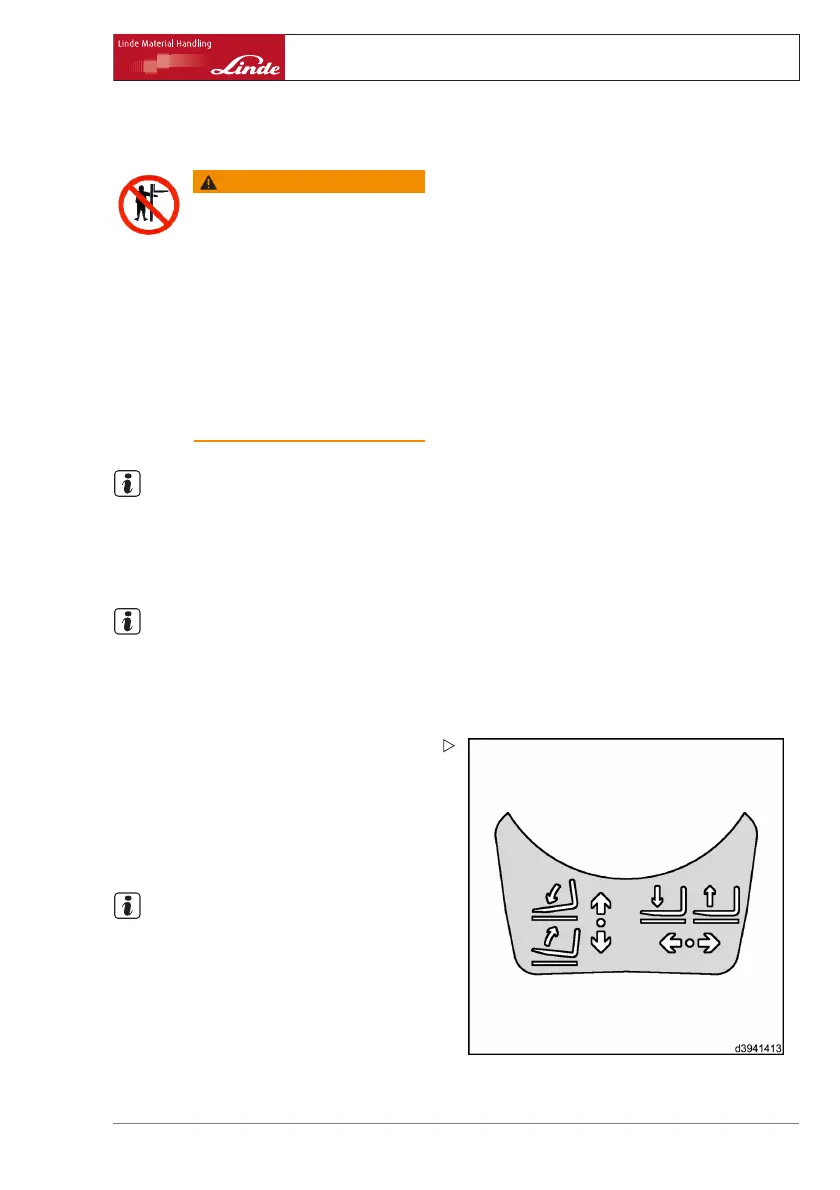

¾ Take note of the switching symbols with
arrows.
The joystick must always be operated gently,
never jerkily. Moving the joystick determines
the lifting, lowering and tilt speed. After the
joystick is released, it automatically returns to
its initial position.
NOTE
The joysticks only function when the engine is
running and the driver is sitting in the driver’s
seat.
Operating Instructions – 394 807 10 01 EN – 07/2011 59
