Overview 3

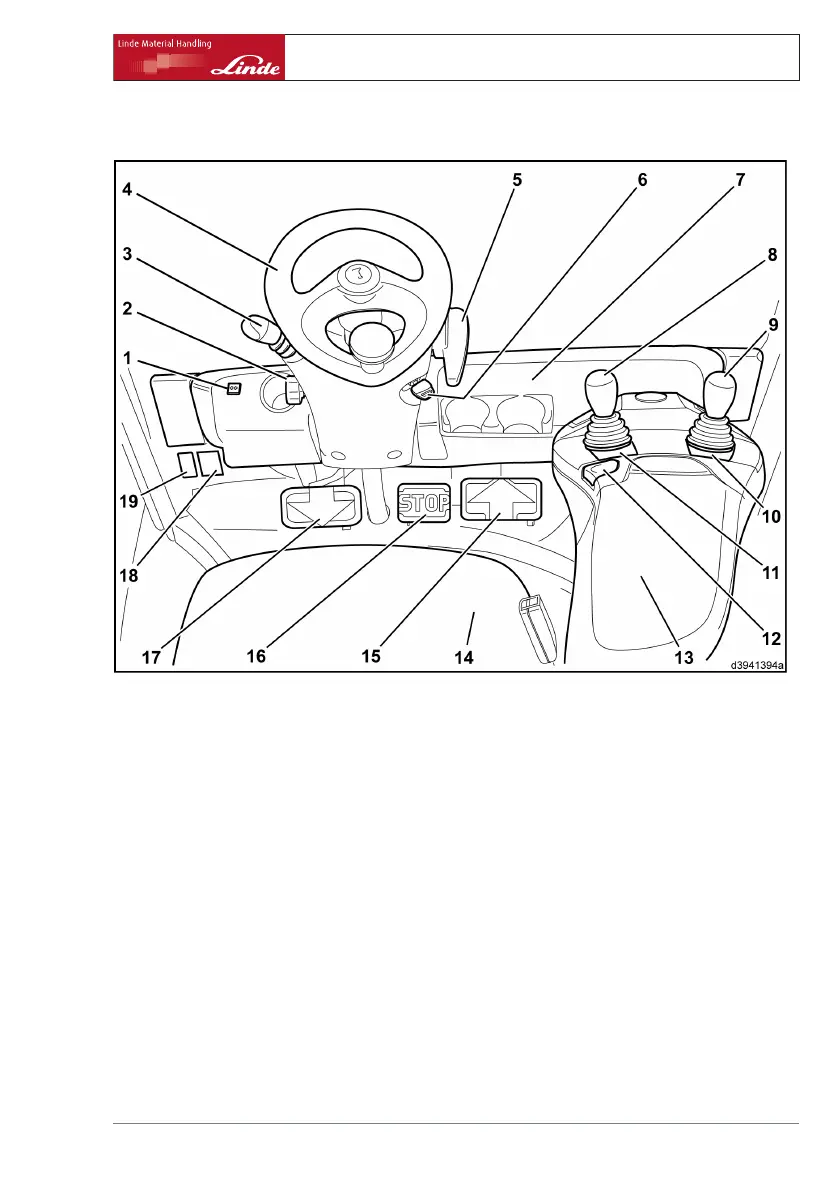

Operating devices
Operating devices
1 Indicator light for turn indicator and hazard
warning system (green) (special equipment)
2 Clamping screw for adjusting the steering
column
3 Multifunction lever for wiper/washer system
and turn indicator (special equipment)
4 Steering wheel / hydrostatic steering
5 Parking brake lever
6 Startingswitchwithswitchkey
7 Compartment
8 Joystick for working hydraulics
9 Joystick for auxiliary hydraulics (attach-
ments) (special equipment)
10 Symbol label for auxiliary hydraulics (attach-
ments) (special equipment)
11 Symbol label for working hydraulics
12 Signal button
13 Armrest on driver’s seat
14 Driver’s seat
15 Forward travel accelerator pedal
16 Stop pedal
17 Reverse travel accelerator pedal
18 "Guaranteed sound power level" label
19 "Truck configuration" sign (for description,
see "truck configuration sign")
Operating Instructions – 394 807 10 01 EN – 07/2011 21
