Safety 2
Fork carriage emergency lowering
Fork carriage emergency
lowering
If there is a malfunction, the fork carriage can
be lowered manually.
¾ Remove floormat.
DANGER
Risk of accident or danger to life
when lowering the fork carriage with
fork arms.
People are not allowed to stand in the
vicinity of the fork arms when they are
being lowered.

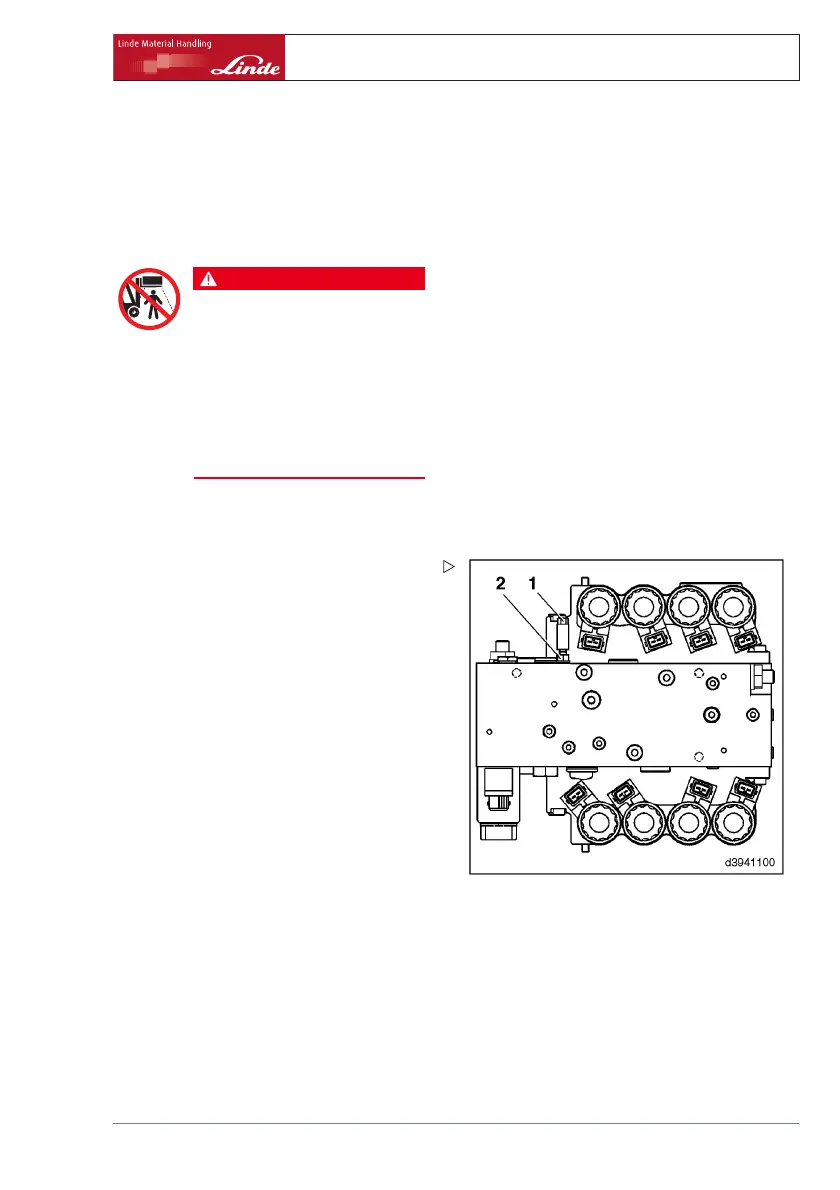

During lowering, leave the socket
wrench on the threaded stud (1) on
the valve block (3) to enable lowering
to be interrupted at any time.
¾ Insert the 8 mm WAF socket wrench
through the opening in the bottom plate.
¾ Using the socket wrench slowly rotate
the threaded stud (1) approx. 3 turns
anti-clockwise until the fork carriage has
been completely lowered.
¾ Open the bonnet.
¾ Open the bottom plate and secure it in
place.
¾ Undo the self-locking nut (2) about 2 turns.
Operating Instructions – 394 807 10 01 EN – 07/2011 15
