Operation 4
Special equipment

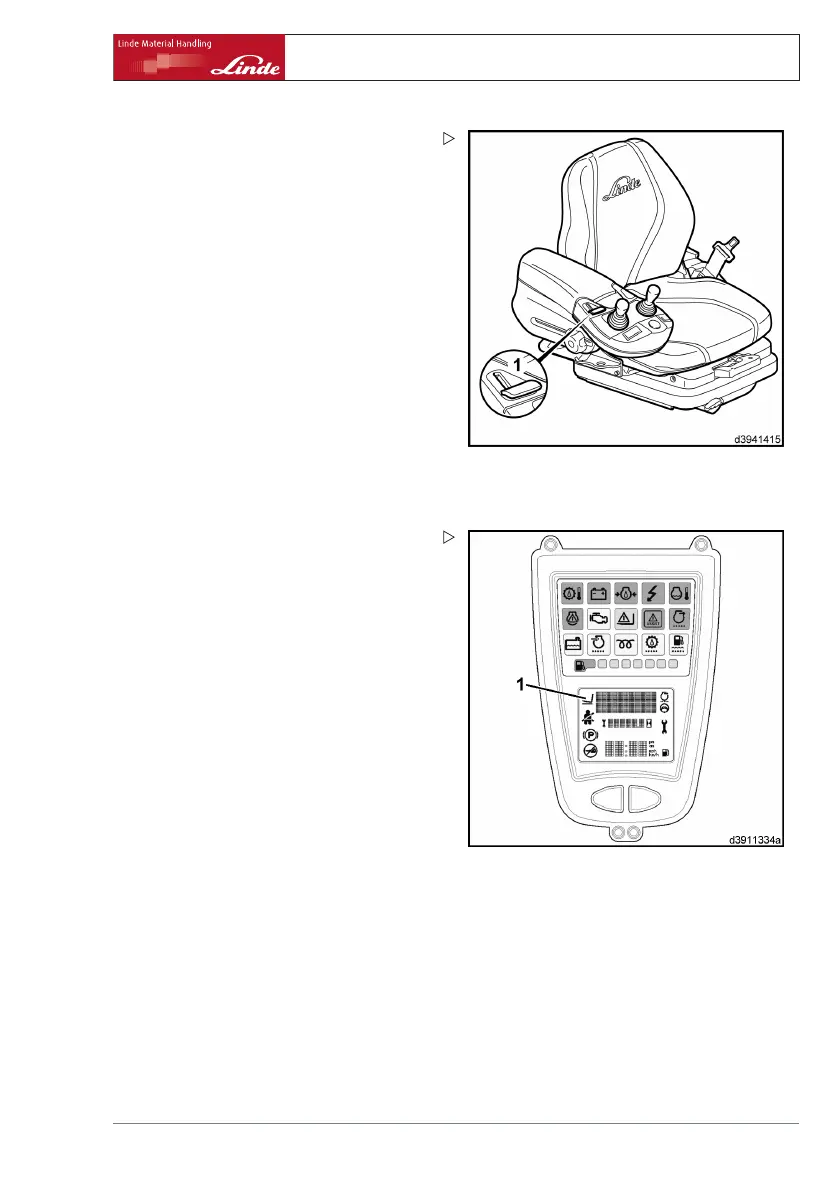

¾ Pull locking lever (1) backwards.
The rotating device is enabled and allows the
seat to be rotated 17° to the right. It can be
locked at 0° and at 17°.
¾ Allow the locking bolt to audib
ly snap into
place.
Lift mast position
ing
Programming
The tilt angle sensor system allows a specific
lift mast tilt angle to be programmed. When
this function is enabled, symbol (1) lights up in
the display unit.
¾ Tilt lift mast to required angle.
Operating Instructions – 394 807 10 01 EN – 07/2011 89
