5 Maintenance
Chassis frame
d3921344

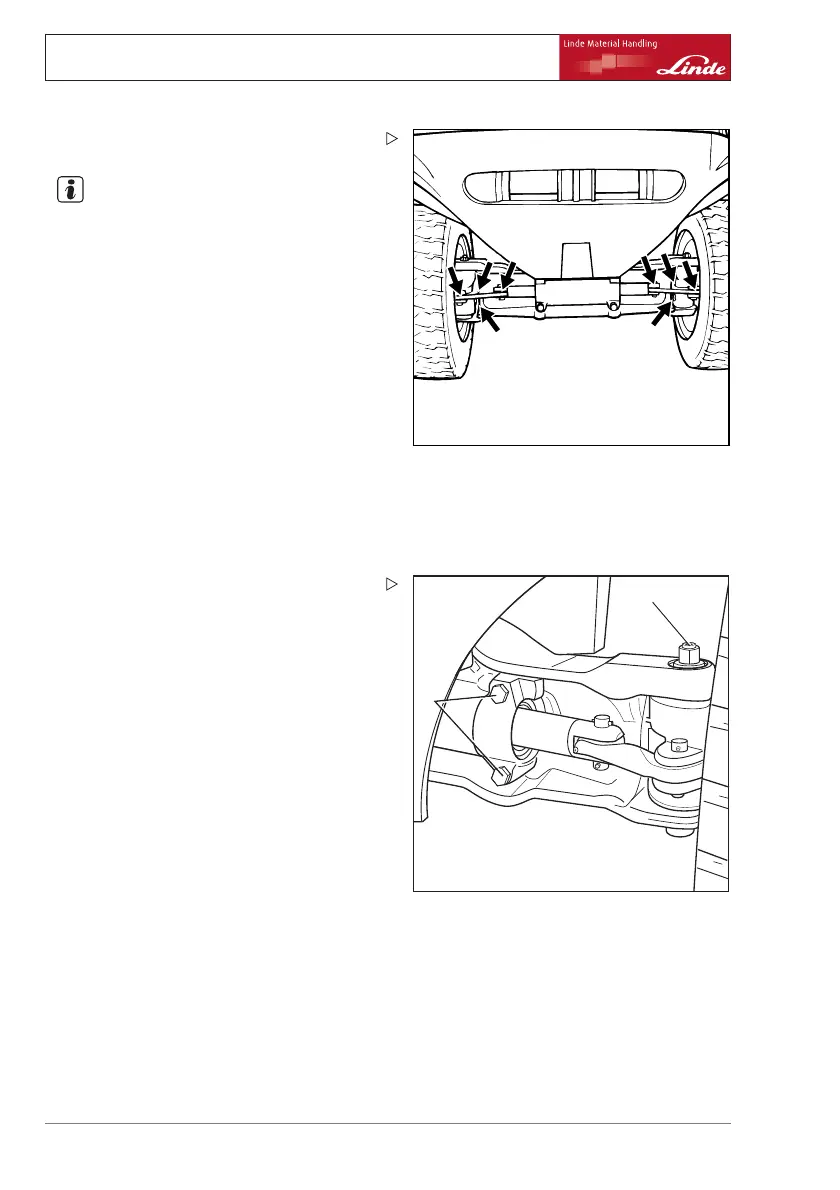

¾ Clean steering axle with water or cleaner
solvent.
NOTE
Lubricating grease should be used for grea-
sing in accordance with consumables recom-
mendations. First grease the axle stub bear-
ings on top, then underneath.
¾ Grease the tie rod and axle stubs at the
lubricating nipples (see arrows) using
lubricating grease.
¾ Grease with grease gun unti
l fresh lubricat-
ing grease escapes at beari
ngs.
Checking the mount
ings of the
steering cylinde
r and steering pivot
pin
d3921345
1
2
¾ Check that the 4
mounting screws (1) are
secure.
Tightening torque: 295 Nm
¾ Check that the nut (2) on the steering pivot
pin is securely attached.
Tightening tor
que: 310 Nm
