4 Operation
Standard equipment

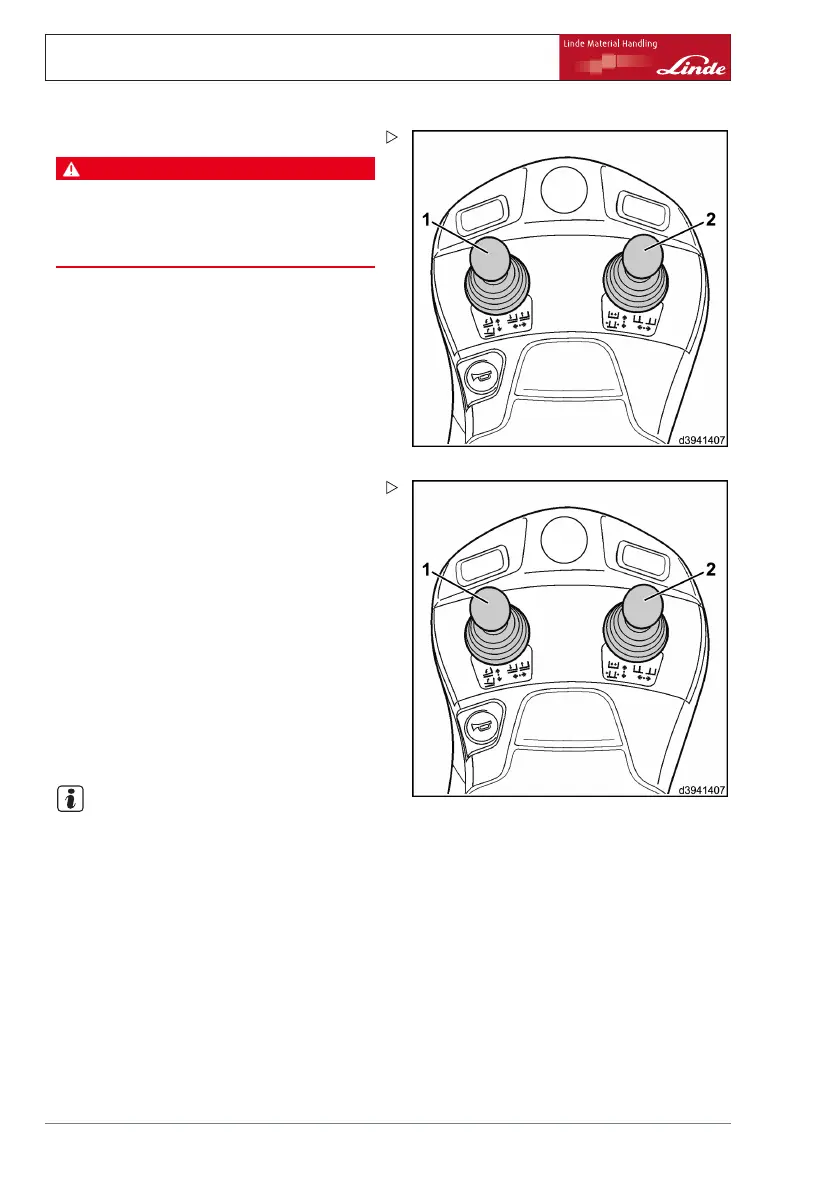

Lifting the fork carriage
DANGER
There is an increased risk of falling and crushing
when lifting the lift mast.
Forthisreason,itisnotpermittedtostepontothe
raised fork arms.
¾ Push joystick (1) to the right.
Lowering the fork carriage
¾ Push joystick (1) to the left.
Tilting the lift mast forwards
¾ Push the joystick (1) forwards.
Tilting the lift mast back
¾ Pull the joystick (1) backwards.
Operating the attachments
Attachments can be fitted to the truck as
special equipment (e.g. sideshift, fork prong
positioner, clamp etc.). Refer to the working
pressure and operating instructions for the
attachment. An additional joystick (cross
lever) is attached for operation.
NOTE
Before fitting an attachment, depressurisa-
tion (special equipment) can be performed to
depressurise the hydraulic system for the au-
xiliary hydraulics so that the connection on the
attachment can be affixed to the connection
on the fork carriage (see "Depressurisation"
under special equipment).
60 Operating Instructions – 394 807 10 01 EN – 07/2011
