5 Maintenance
Engine

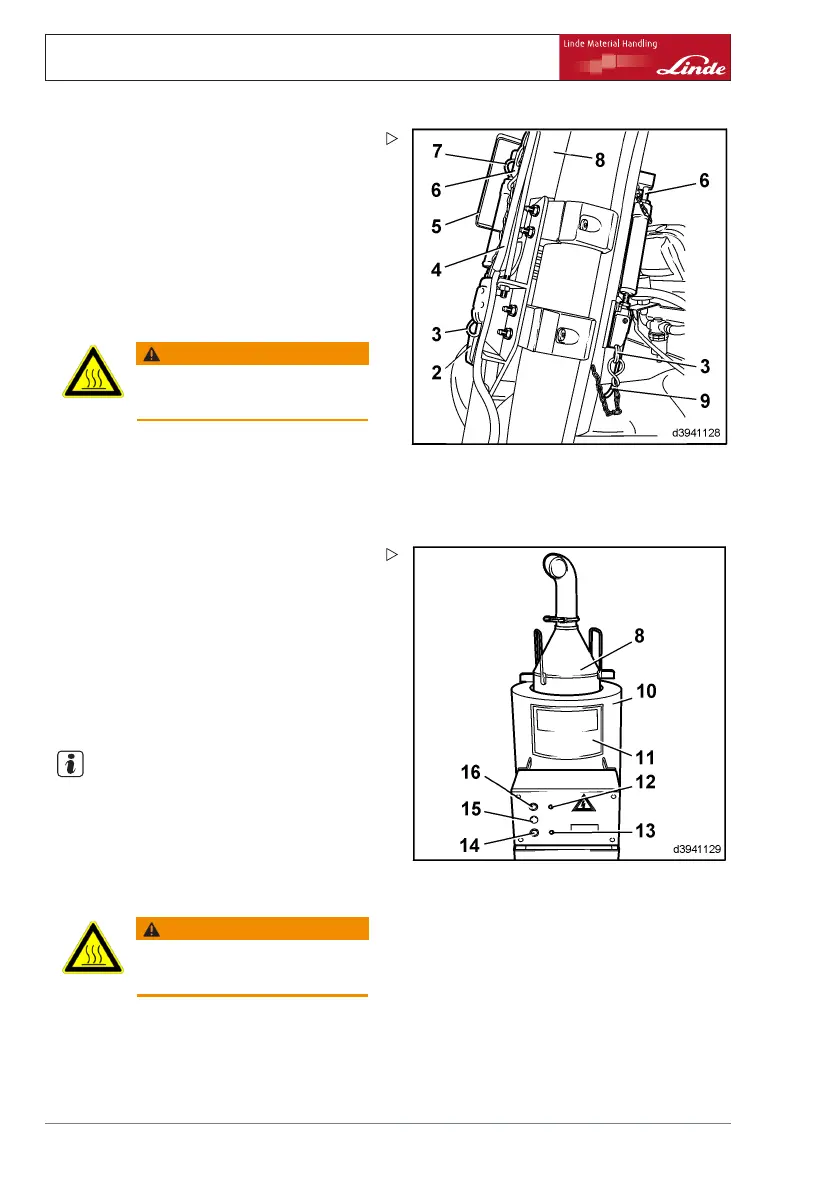

¾ Remove the retaining split pin (3) from the
quick-locking mechanisms.
¾ Release quick-locking mechanisms (2) and
(9) and disconnect the rod (6) at the top at
the filter.
¾ Remove the retaining split pin
(7) at the
contact protection.
¾ Fold out the contact protection (4). Use the
bracket (5) to do this.
WARNING
Danger of burns.
Use protective gloves.
¾ Remove the particle filter (8), avoiding
impact stress.
Cleaning the particle filter
¾ Insert the particle filter (8) into the regener-
ation system (10).
¾ Switch on the regeneration system (10)
using the "ON" push-button (15).
¾ The operating display (12) lights up.
Regeneration is complete once the operating
display has gone out by itself.
Regeneration time: approx. 50 minutes.
NOTE
The duration of regeneration is fixed and
depends on the size of the filter. The duration
of the regeneration procedure is not influenced
by the amount of particulate on the filter. An
exchange filter can be burnt out when both
partially and fully covered with particulate.
WARNING
Danger of burns.
Observe the decal information (11).
150 Operating Instructions – 394 807 10 01 EN – 07/2011
