Maintenance 5
Chassis, bodywork and fittings

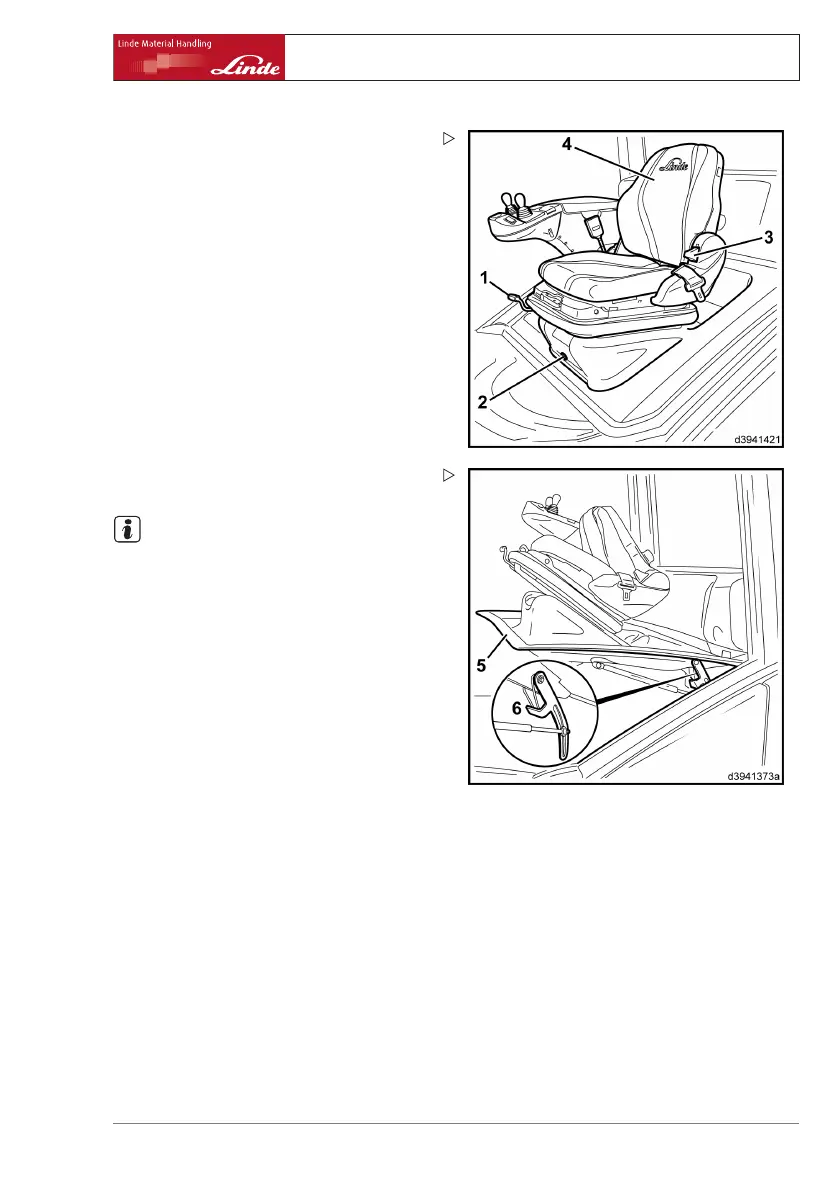

¾ Pull the lever (1) upwards and push the
driver’s seat forwards as far as it will go.
¾ Release the lever (1) and allow the seat to
engage.
¾ If a rear window is installed, p
ush the lever
(3) upwards and hold, fold the s
eat backrest
(4) all the way forwards and r
elease the
lever (3) .
¾ Push your finger into bore (2) to release the
bonnet catch; whilst doing so, release the
pressure on the bonnet catch by pressing
the bonnet downwards.
¾ Open bonnet (5) to the stop of the support
mounting (6).
NOTE
The bonnet can b
e opened further for specific
maintenance wo
rk. To open the bonnet in this
way, the armres
t must firstly be moved all the
way down.
Operating Instructions – 394 807 10 01 EN – 07/2011 157
