4 Operation
Standard equipment

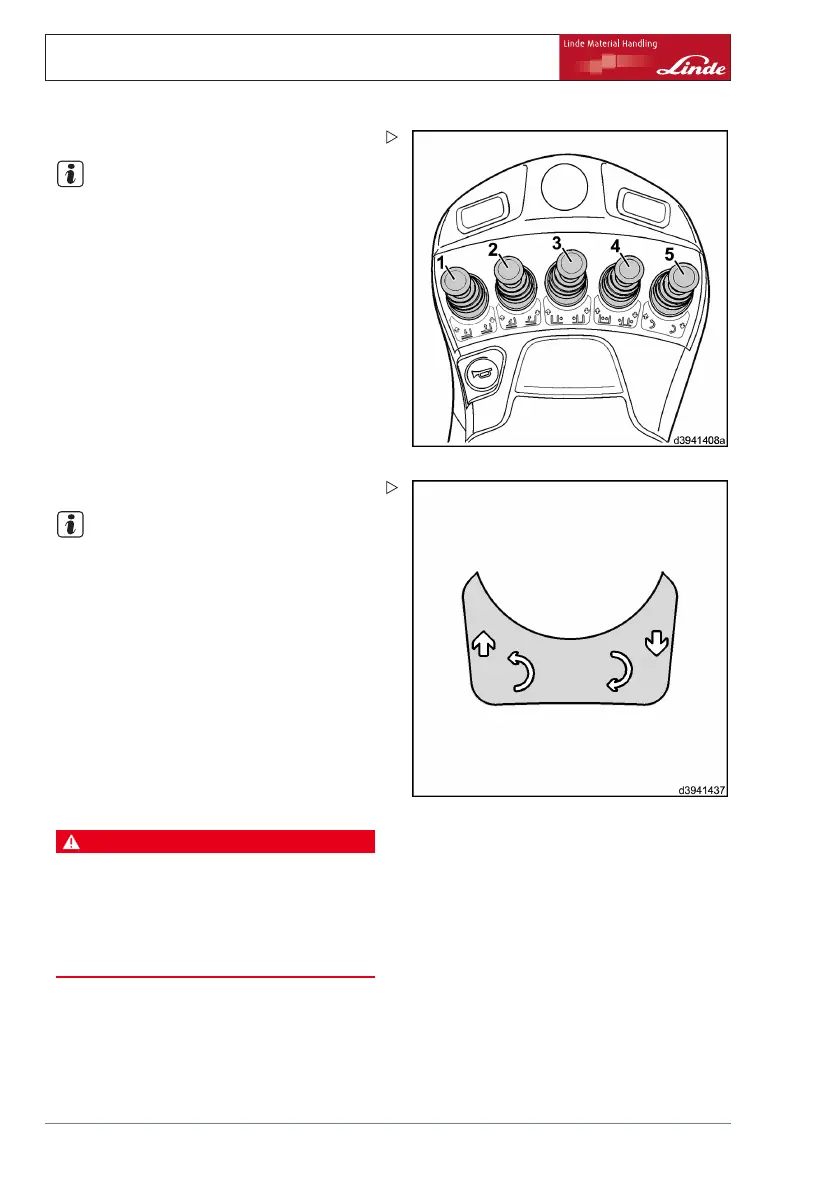

Operating the fork prong positioner
NOTE
In order to prevent damage, do not activate
the fork prong positioner with a load, or with
the fork arms on the ground. Do not use the
fork prong positioner as a clamp.
¾ Push the joystick (4) forwards.
Fork arms move outwards.
¾ Pull the joystick (4) backwards.
Fork arms move inwards.
Operating the rotator
NOTE
Ensure that there
is sufficient distance when
the rotator is tu
rning, in order to prevent
damage occurrin
g.
¾ Take note of the switching symbols with
arrows.
¾ Push the joystick (5) forwards.
Unit moves antic
lockwise.
¾ Pull the joystick (5) backwards.
Unit moves clockwise.
Operating the clamp
DANGER
Increased risk of accident from a falling load.
For attachments that perform a clamping function
(e.g. a bale clamp), a lockable joystick must be
used.
If your truck is not fitted with this equipment, please
contact your authorised dealer.
68 Operating Instructions – 394 807 10 01 EN – 07/2011
