4 Operation
Standard equipment

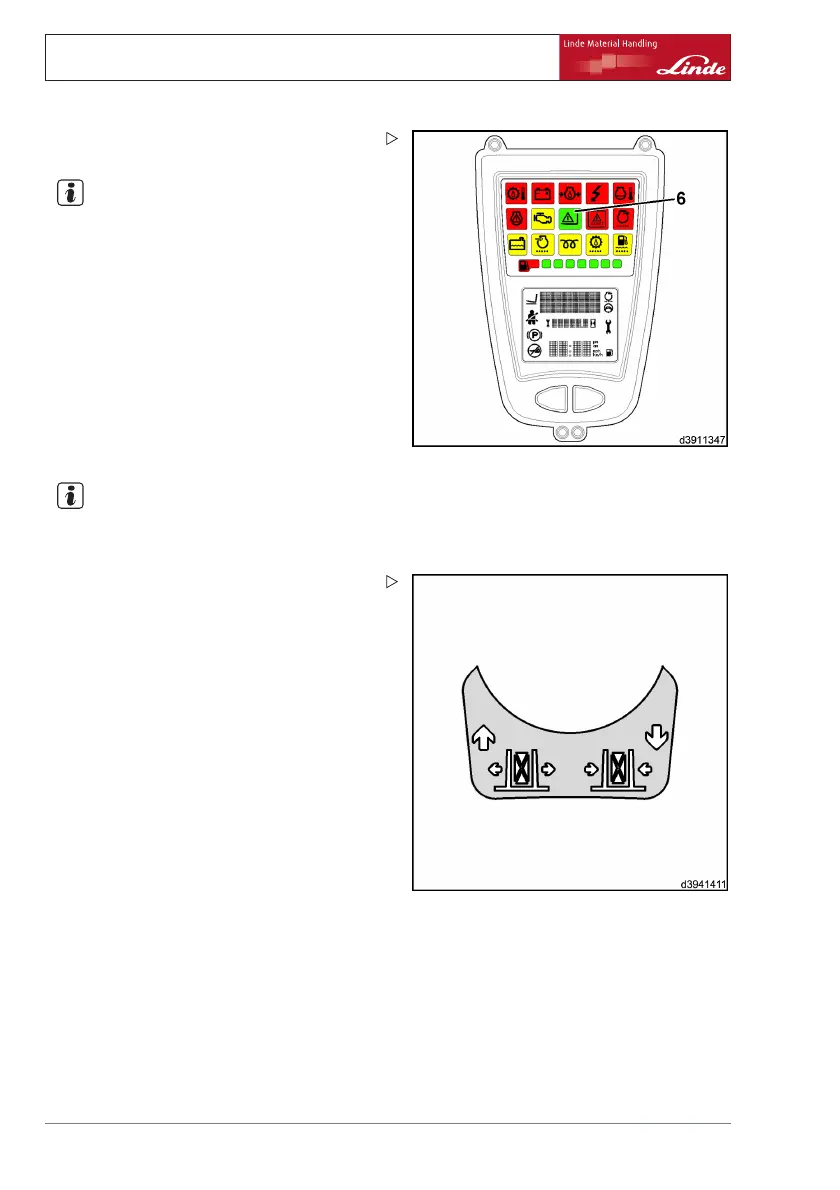

Joystick is unlocked for approx. one second
and the display (6) lights up in the display unit.
NOTE
If the joystick is not moved f
orwards within this
time period, it is locked aga
in.
¾ Push the joystick (4) forwards.
Clamp opens.
Once the joystick has been
released, it is
locked again within one se
cond.
¾ Pull the joystick (4) backwards.
Clamp closes.
Version 2: Mechanically locked
NOTE
The joystick is recognisable by the somewhat
wider design of the bellows.
¾ Take note of the switching symbols with
arrows.
70 Operating Instructions – 394 807 10 01 EN – 07/2011
