Logicube Falcon
®
-Neo User’s Manual 140

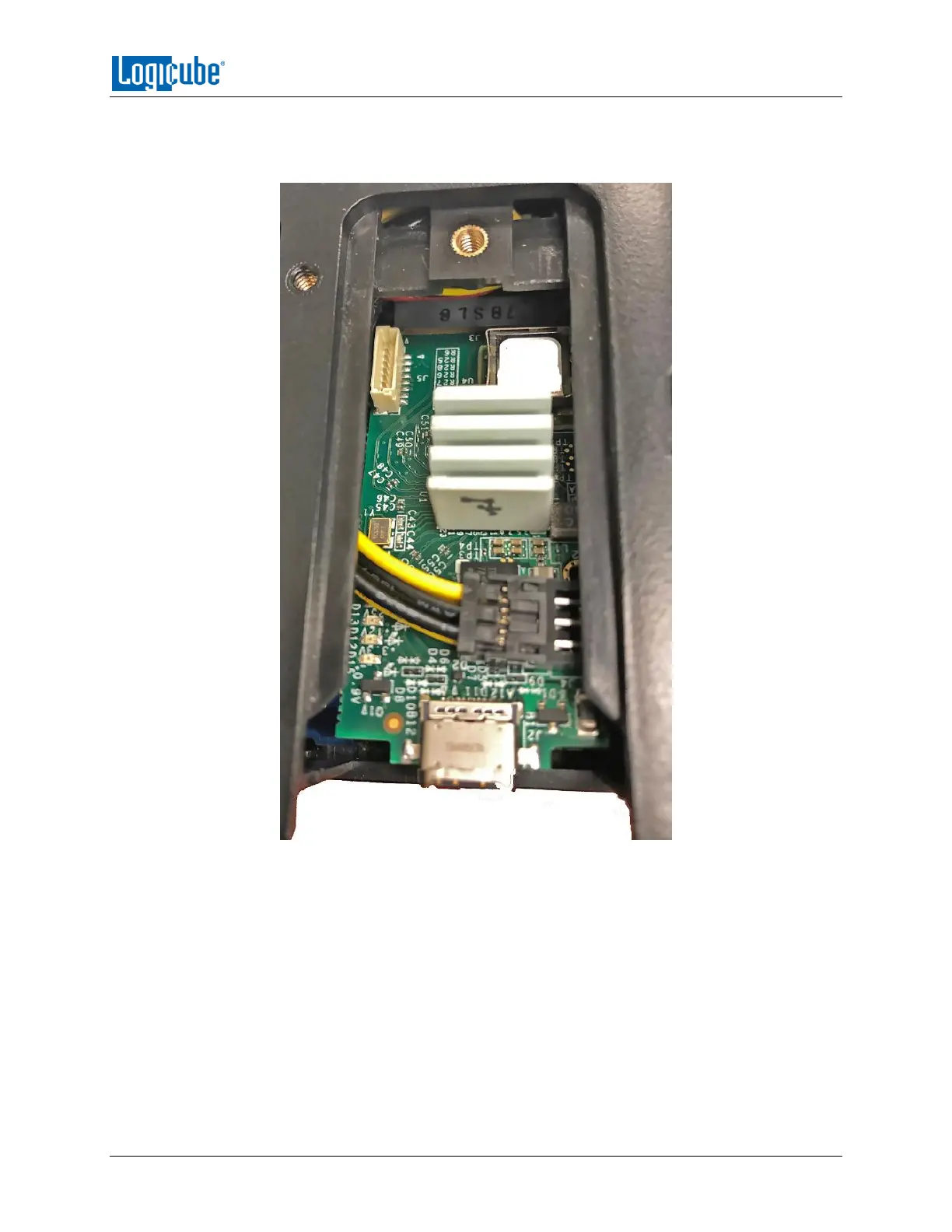

4. Connect the Thunderbolt/USB-C I/O card into the open I/O port. Once the card is
connected, attach/connect the 6-pin power cable to the Thunderbolt/USB-C I/O
card.
5. Take the labeled door and attach it back to the open I/O port. Use the included
screwdriver to re-tighten the screw to the I/O port door.
6. Repeat steps 2 through 5 to install other Thunderbolt/USB-C I/O cards to any of
the other available I/O ports.
Once all the Thunderbolt/USB-C I/O cards have been properly installed, the Falcon-NEO
can now be used with Thunderbolt/USB-C external drives and storage enclosures. Any
connected Thunderbolt/USB-C external drive and enclosure should appear like any other
drive.
