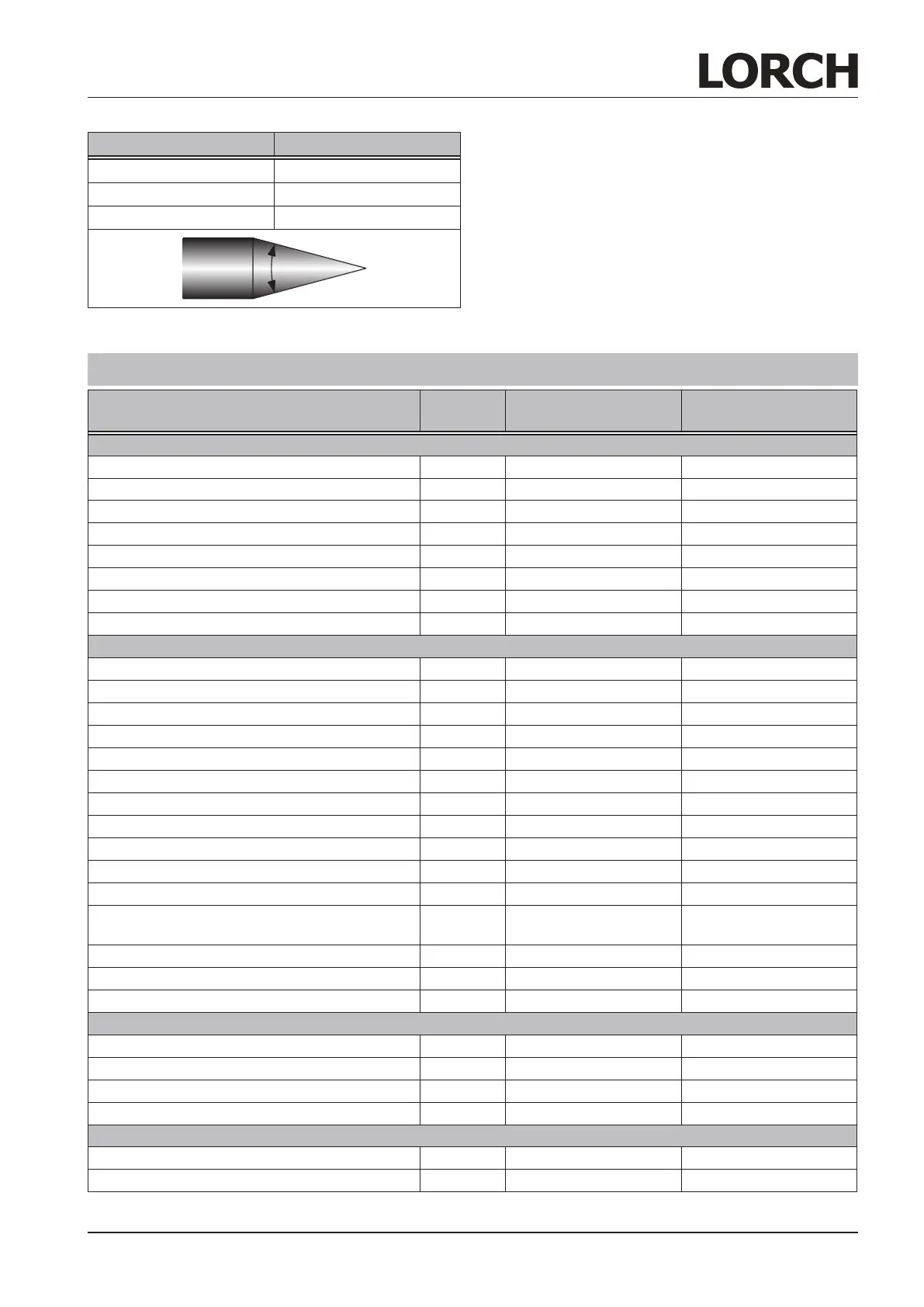

Technical data
10.15
21 Technical data
Technical data* Units
Handy 180 DC
BasicPlus
Handy 180 DC
ControlPro
Welding
Welding range TIG (I
2min
-I
2max
/U
2min
-U
2max
) A/V 5 - 180 / 10,2 - 17,2 5 - 180 / 10,2 - 17,2
Welding range electrode (I
2min
-I
2max
/U
2min
-U
2max
) A/V 5 - 150 / 20,2 - 26,0 5 - 150 / 20,2 - 26,0
No load voltage max. V < 85 < 85
Current setting innitely variable innitely variable
Slope characteristic falling falling
ED 100% 40°C A 130 130
ED 60% 40°C A 150 150
ED max. current 40°C % 30 30
Mains
Mains voltage (50/60Hz) 1~ V 230 230
Positive mains tolerance % +15 +15
Negative mains tolerance % -15 -15
Power consumption S
1
(100%/40°C) kVA 3,3 3,3
Power consumption S
1
(60%/40°C) kVA 4,0 4,0
Power consumption S
1
(max.current) kVA 5,1 5,1
Current consumption I
1
(100%/40°C) A 14,2 14,2
Current consumption I
1
(60%/40°C) A 17,2 17,2
Current consumption I
1
(max.current) A 22,3 22,3
Maximum effective mains current I
1eff
/A 14,2 14,2
Power factor (I
2 max.
) cos φ 0,99 0,99
Max. permissible system impedance Zmax
in acc. with IEC 61000-3-11/-12
mΩ 23 23
Mains fuse (slow-response) A 16 16
Mains cable mm² 3 x 2,5 3 x 2,5
Mains plug Schuko Schuko
Machine
Protection class IP 23 23
Insultation class F F
Cooling method F F
Noise emission dB(A) <70 <70
Dimensions and weights
Dimensions (LxBxH) mm 337 x 130 x 211 337 x 130 x 211
weight kg 6,5 6,5
*) measured at 40° C environmental temperature
Current [A]
Electrode angle
10 - 50 15° - 30°
50 - 200 30° - 45°
> 200 45° - 75°
Tungsten electrodes has to be ground always length-
wise, because the grinding marks crosswise cause a
nervous/attering arc.The shape of the electrode for DC-
welding has to be sharp as a pencil. The angle of the
point depends on the welding current. It is enough when
AC-welding to sharpen slightly edge of the electrode. Af-
ter a short time, a round to slightly convex form is built.
If the electrode tip is polluted due to dipping into the weld
pool or touching the ller wire, the respective part of the
electrode shall be completely ground off. Restore the
original, pointed shape. Grind in longitudinal direction.
