 Connect nvoRedRtr of one L-IP Redundant with the nviRedRtr of its paired L-IP
Redundant and vice versa.
If using LonMaker for Windows the resulting drawing should look like shown in Figure 14.
Furthermore, the PRIM LED on one of the two L-IP Redundant devices should be green
and should be off on the other one.

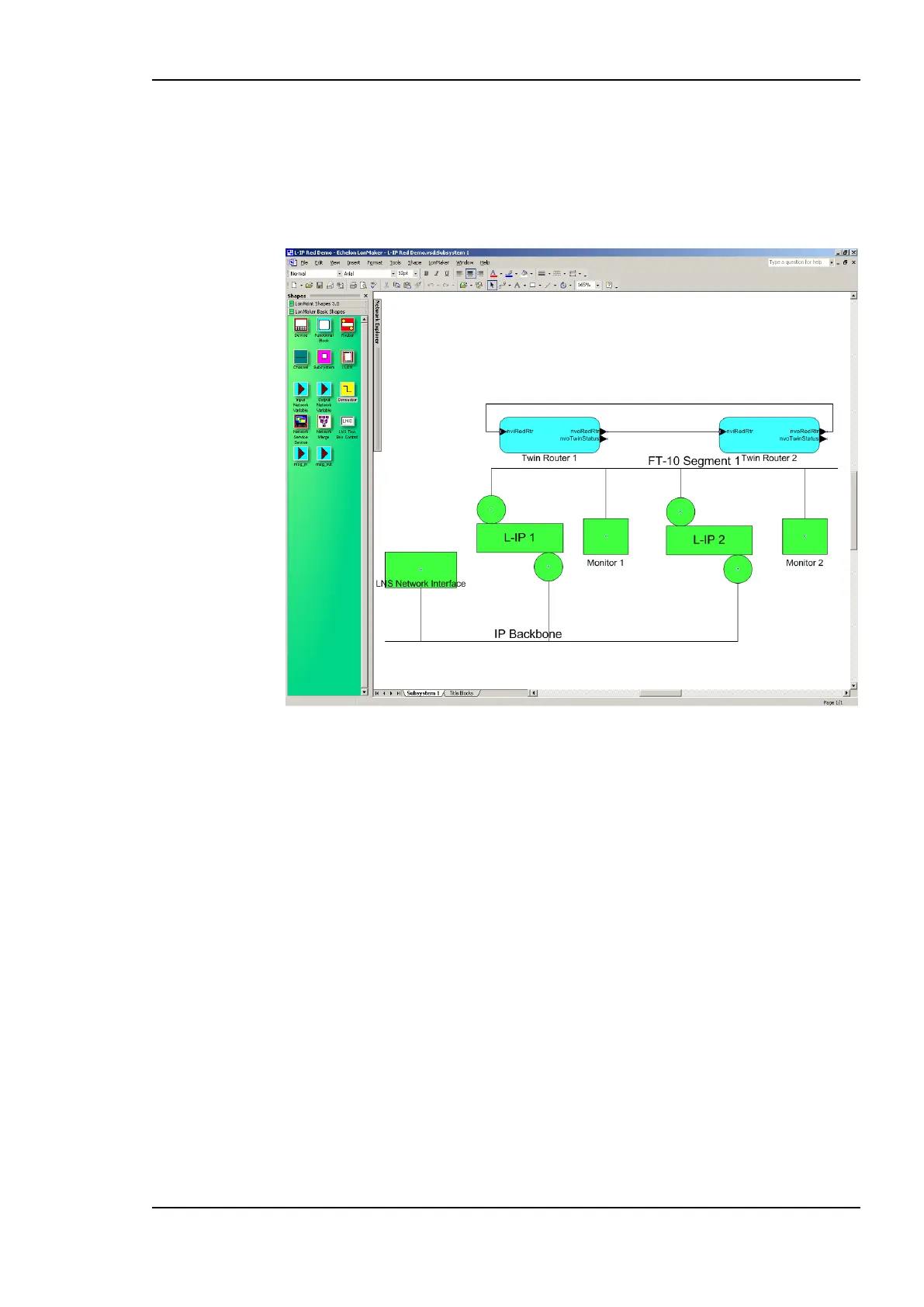

Figure 14: A pair of L IP Redundant devices configured for twin router operation
For detailed instructions on how to configure the L-IP Redundant refer to Section 9.
