LSIS sv-ig5a User Manual

7-3

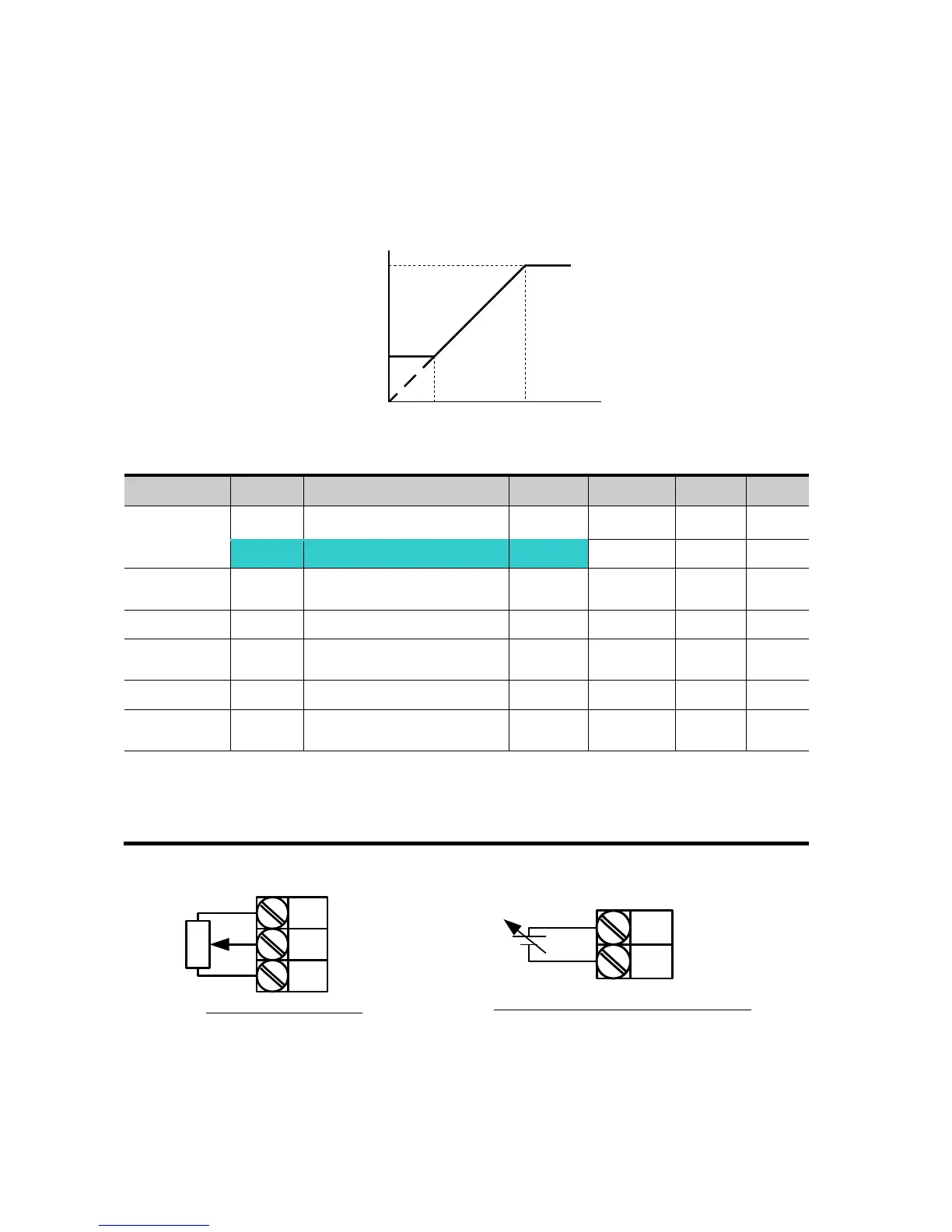

 I6 ~ I10: Setting input range and corresponding frequency to 0 ~ +10V V1 input voltage
Ex) when minimum (+) input voltage is 2V with corresponding frequency 10Hz and Max
voltage is 8V with run freq.
 Frequency setting via 0 ~ 10 [V] input or Terminal Potentiometer
Group
Code
Parameter Name
Setting
Range
Initial
Unit
Drive group
0.00
[Frequency Command]
-
0 ~400
0.00
Hz
Frq
[Frequency Mode]
3
0 ~ 9
0
I/O group
I 6
[Filter time constant for V1
input]
10
0 ~ 9999
10
I 7
[V1 input Min voltage]
-
0 ~ 10
0
V
I 8
[Frequency corresponding
to I 7]
-
0 ~ 400
0.00
Hz
I 9
[V1 input max voltage]
-
0 ~ 10
10
V
I10
[Frequency corresponding
to I 9]
-
0 ~ 400
60.00
Hz
 Select 3 in Frq code of Drive group.
 0-10V can be directly applied from an external controller or a potentiometer connected on
terminals VR, V1 and CM.
 Wire the terminals as shown below and refer to I 6 ~ I 10.
VR
V1
CM
Wiring of potentiometer
V1
CM
0 ~ 10V input via external controller
Set freq.
V1 input
I 7 I 9
I 8
I 10
2V 8V
10Hz
50Hz
