XGB Analog edition manual
(3) Sample Input Program (for IEC type)

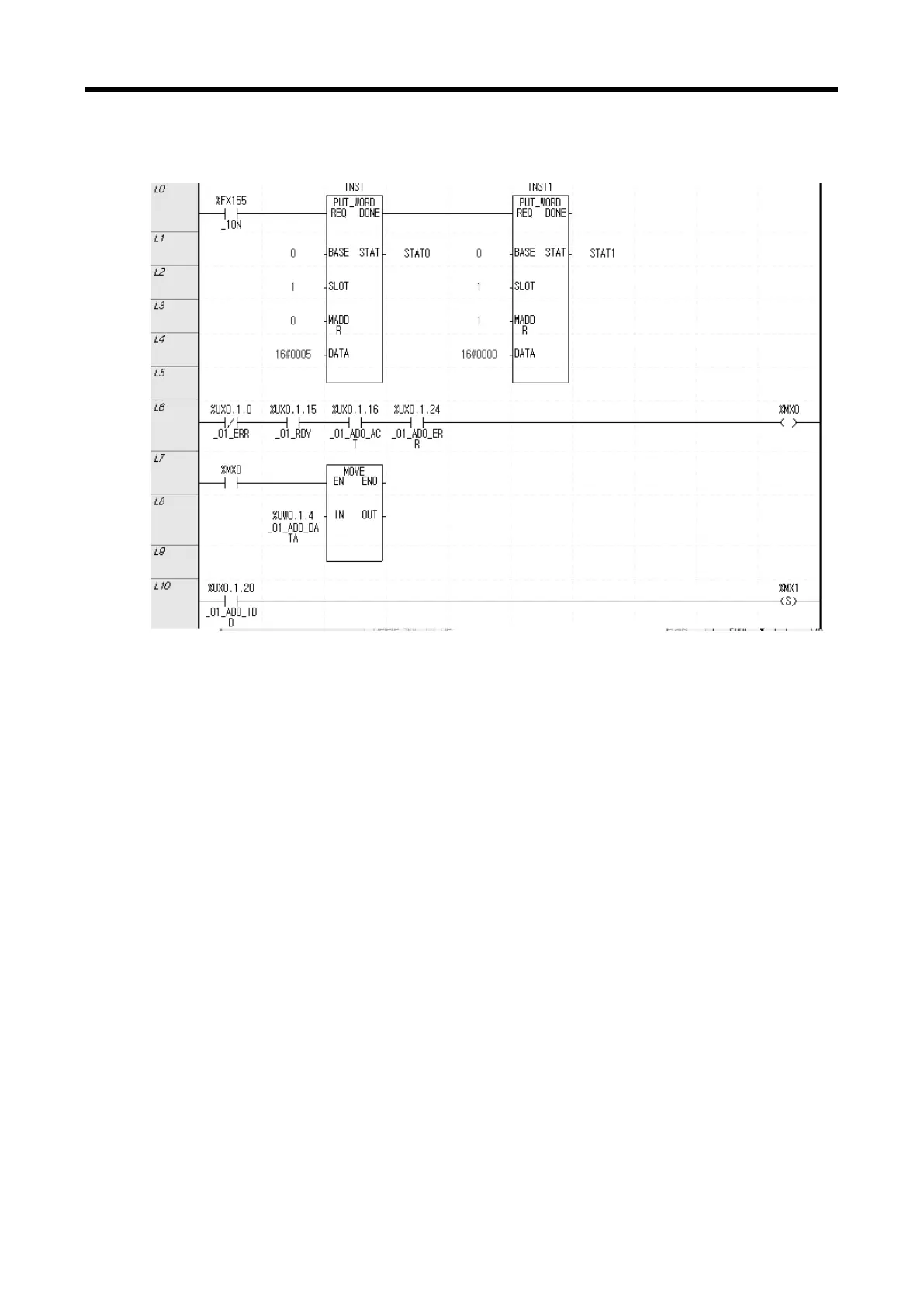

(a) Using PUT command to write h0005 in the address 0, slot 1 to operate Input Channel 0 and
Output Channel 0.
(b) Using PUT command to write h0000 in the address 1, slot 1 to set the input range of Input
Channel 0 to DC 4 ~ 20mA and the output range of the Output Channel 0 to DC 4 ~ 20mA.
(c) When the module is in normal operation, %MX0 is turned on.
%UX0.1.0(Module Error) = Off
%UX0.1.15(Module Ready) = On
%UX0.1.16(Input Channel 0 in-operation) = On
%UX0.1.24(Input Channel 0 Error) = Off
(d) When %MX0 is on, Input Channel 0 Converted Value (%UW0.1.4) is transferred to “Channel 0
Input” variable.
(e) If open-wire error occurs at Channel 0, %UX0.1.20(Channel0open) is turned on and %MX1 bit
is set.
