Chapter 8 Analog Input Option Board (XBO-AD02A)
(f) Minimum/Maximum Value Monitoring
The minimum and maximum values of the input channels in operation can be monitored.
However, the Max/Min values in the window are based on the current value. Therefore,
the Max/Min values are not saved when exiting from the [Monitoring/Testing Screen].
Monitor max/min
value
Reset max/min
value

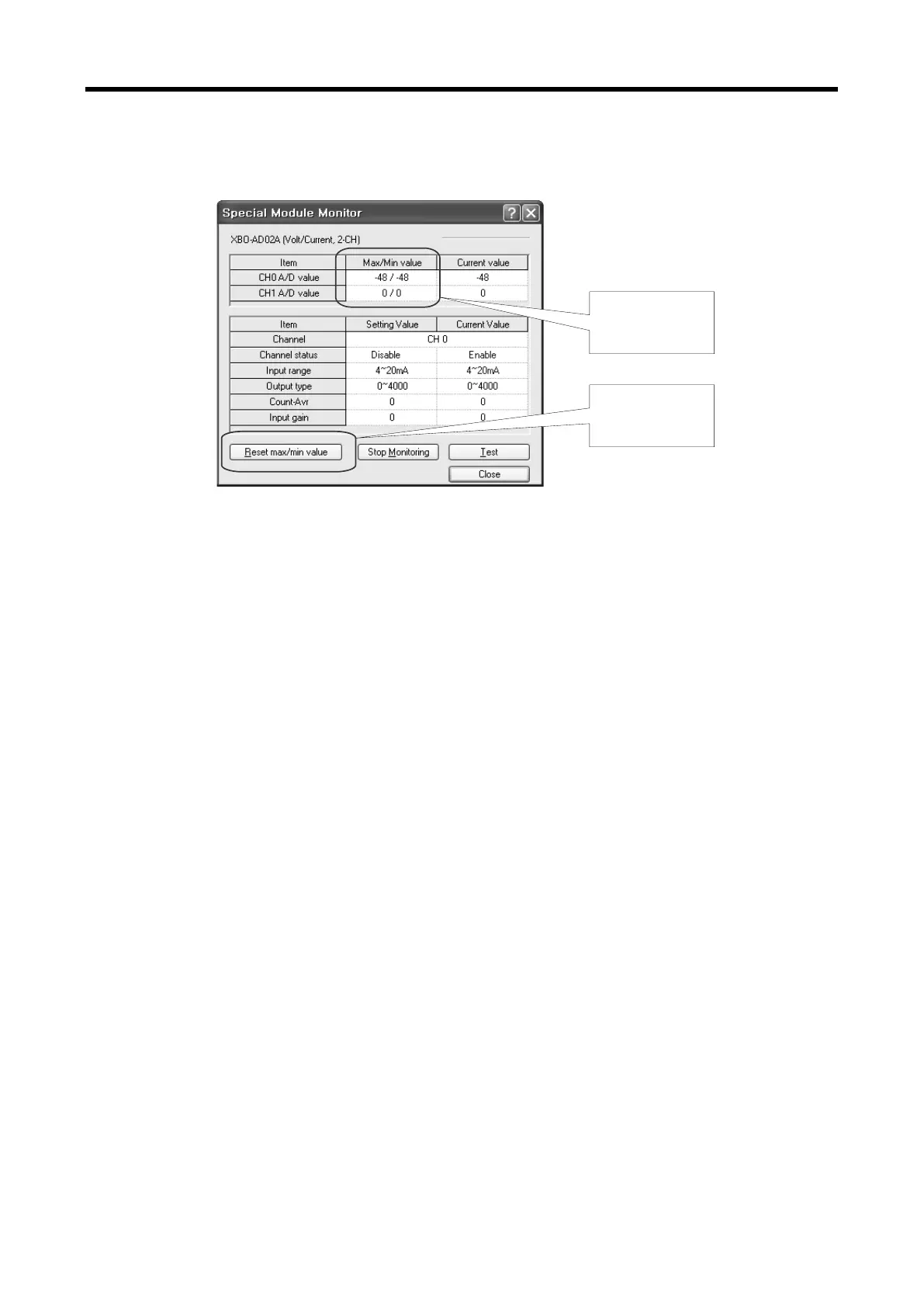

The screen executing [Max/Min Value Monitoring]
(g) Close
[Close] button is for ending/closing the monitoring/testing screen. Maximum,
minimum, and current values are not saved at exit.
8 - 19
