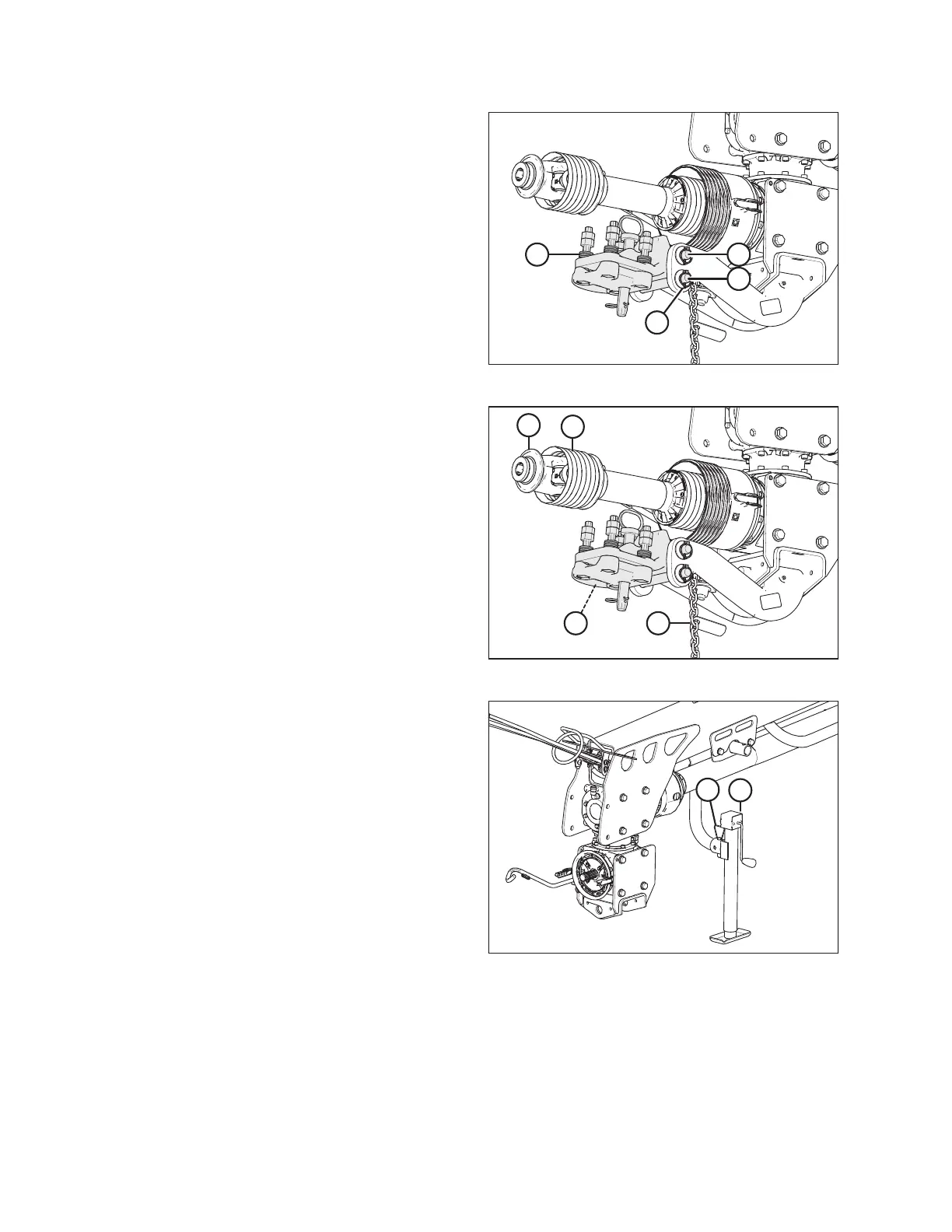

Figure 5.5: Rotary Disc Pull-Type Hitch
4. Lower the hitch with the jack so that pin (A) engages
drawbar hitch adapter (B).
5. Install clevis pin (C) and secure with lynch pin (D).
$
%
&
'
Figure 5.6: Primary Driveline
6. Position primary driveline (A) onto the tractor power take-
off (PTO).
7. Pull back collar (B) on primary driveline (A), and push the
primary driveline until it locks. Release collar.
8. Route safety chain (C) from the rotary disc pull-type
through chain support (D) on the drawbar hitch adapter
and around the tractor drawbar support. Lock hook
on chain.
IMPORTANT:
If the tractor has a three-point hitch, lift the links as far as
possible to prevent damage to the hitch.
$
%
Figure 5.7: Hitch Jack
9. Raise jack (A), and remove pin (B).
CONNECTING THE TRACTOR TO THE ROTARY DISC PULL-TYPE
