MacDon R113 - Attaching with Two-Point Hitch

215585 103 Revision A

$
%

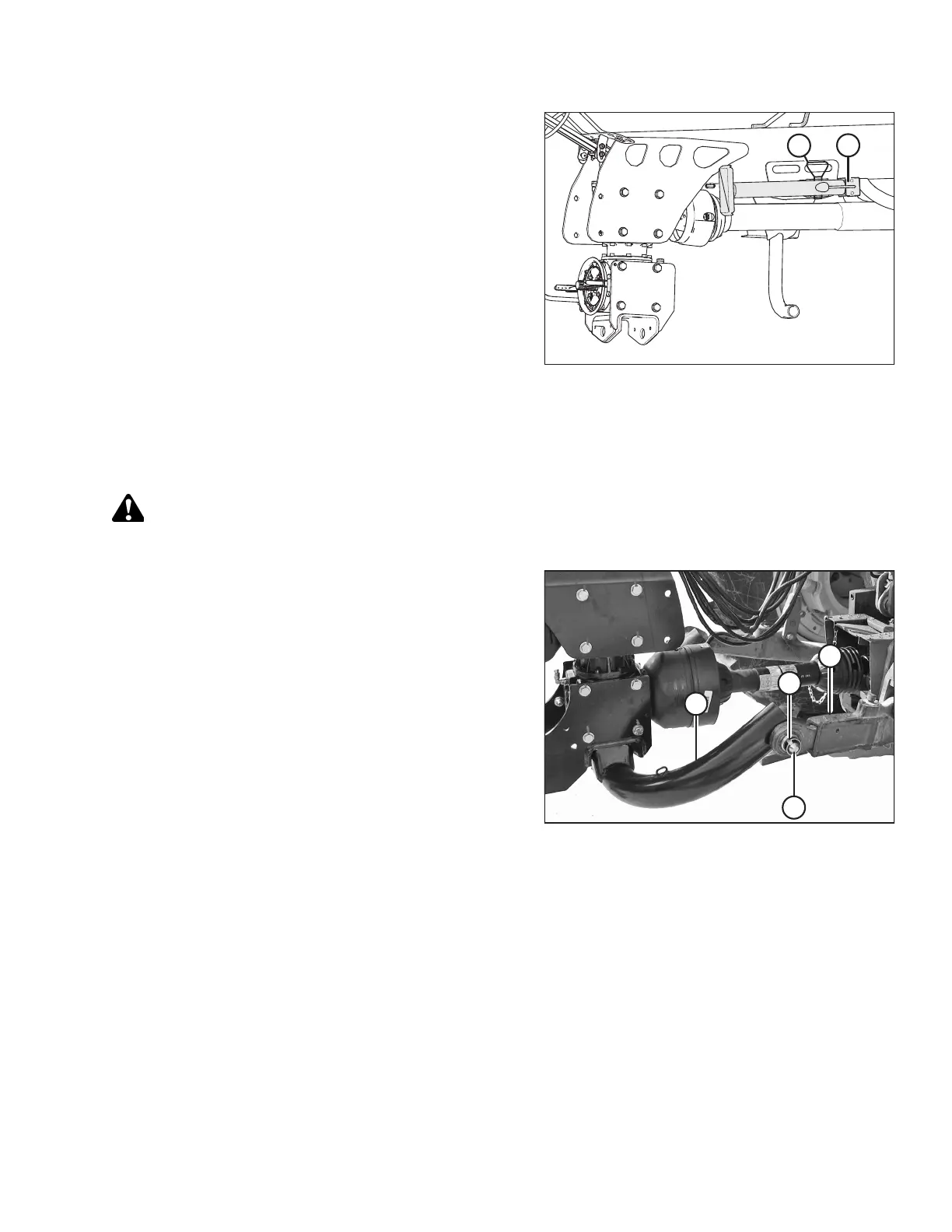

Figure 5.8: Drawbar Jack Storage
10. Move jack (A) to storage position on top of hitch, and
secure with pin (B).
11. Proceed to 5.3.3 Connecting Hydraulics, page 106.
5.3.2 Attaching with Two-Point Hitch
If the pull-type was configured for a tractor with a two-point hitch, then the pull-type can now be attached to the tractor.
DANGER
To avoid bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key before making adjustments to the machine.

$
%
&
'
Figure 5.9: Two-Point Hitch Configuration
1. Position the tractor and align hitch arms (A) with hitch
adapter (B).
2. Shut down the engine, and remove the key from
the ignition.
3. Remove lynch pins (C) and washers from the hitch adapter.
4. Secure hitch arms (A) onto adapter pins (D) with lynch
pins (C).
NOTE:
If the tractor is equipped with a category III hitch, use a
bushing (MD #224322) on each hitch pin (D). Two bushings
(MD #224322) are included with the two-point hitch
assembly.
NOTE:
If using a category III hitch, a longer driveshaft may be
required.
5. Install anti-sway bars (not shown) on the tractor hitch to
stabilize lateral movement of hitch arms (A). For
instructions, refer to your tractor operator’s manual.
CONNECTING THE TRACTOR TO THE ROTARY DISC PULL-TYPE
