6.6 Discharge Shield – No Conditioner
Discharge shields control the distribution of unconditioned crop when no conditioner is installed.
• If a conditioner is being installed, the discharge shield needs to be removed. For instructions, refer to 6.6.1 Removing
Discharge Shield – No Conditioner, page 123.
• If a conditioner is being removed, the discharge shield needs to be installed. For instructions, refer to 6.6.2 Installing
Discharge Shield – No Conditioner, page 125.
6.6.1 Removing Discharge Shield – No Conditioner
Discharge shields may need to be removed for machine service, but a rotary disc pull-type without a conditioner should
NOT be operated without the discharge shield.

%
$

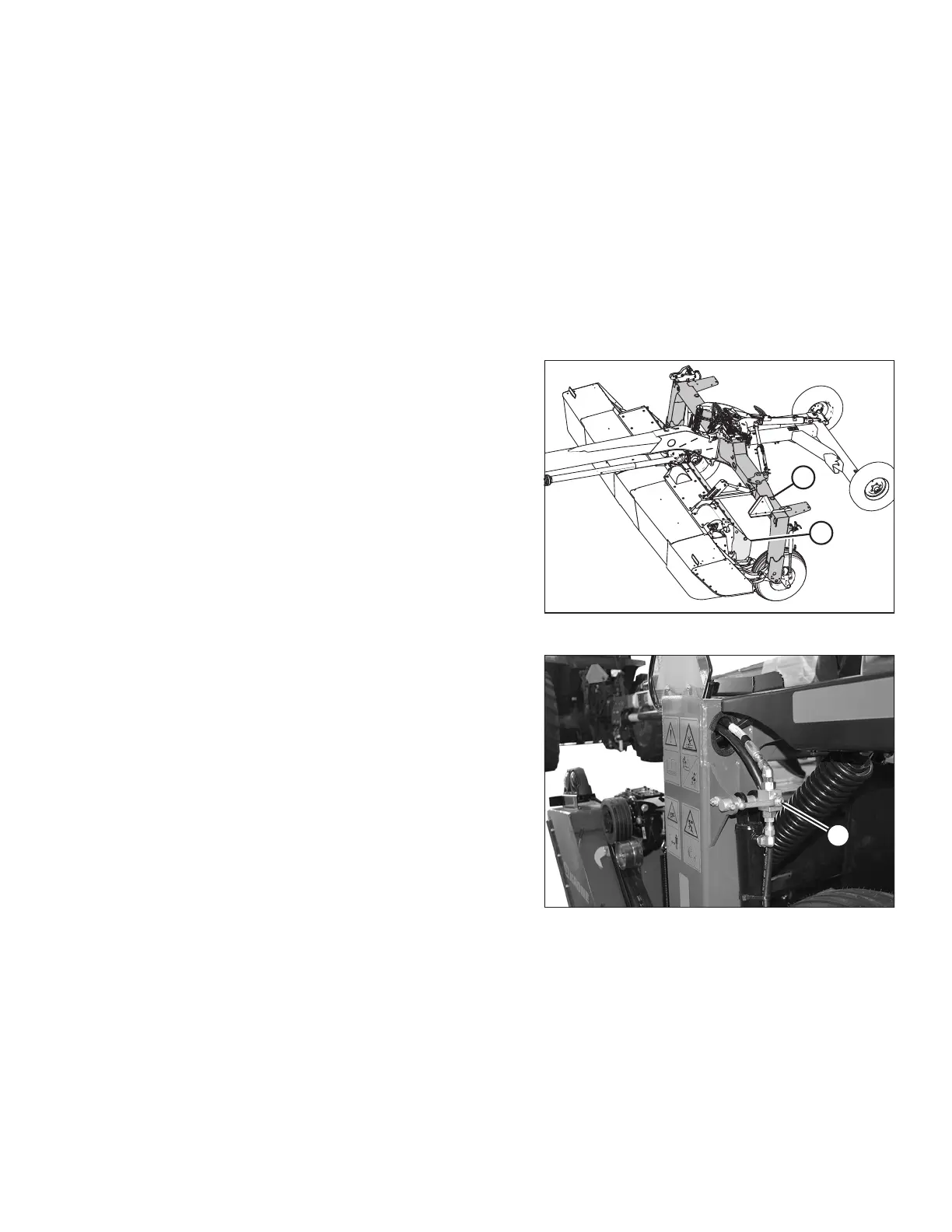

Figure 6.34: Rotary Disc Pull-Type with Transport
1. Raise the rotary disc pull-type fully and extend the center-
link to maximize the space between shield (A) and carrier
frame (B).

$
Figure 6.35: Lift Cylinder Lock-Out Valves
2. Close lift cylinder lock-out valves (A) on both sides of the
rotary disc pull-type. Valve handles should be in the closed
position (90° angle to the hose).
COMPLETING ROTARY DISC PULL-TYPE ASSEMBLY
