215585 181 Revision A
Chapter 10: Reference
Additional information and commonly repeated procedures are included in the reference chapter.
10.1 Engaging Locks
Hydraulic lock-out valves are provided for safely transporting and servicing machinery.
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, stop engine, remove key, and
engage lift cylinder lock-out valves before going under machine for any reason.
IMPORTANT:
Connect hoses so that moving the cylinder control lever backward raises the rotary disc pull-type, and moving the cylinder
control lever forward lowers the rotary disc pull-type. Refer to 5.3.3 Connecting Hydraulics, page 106 for more information.

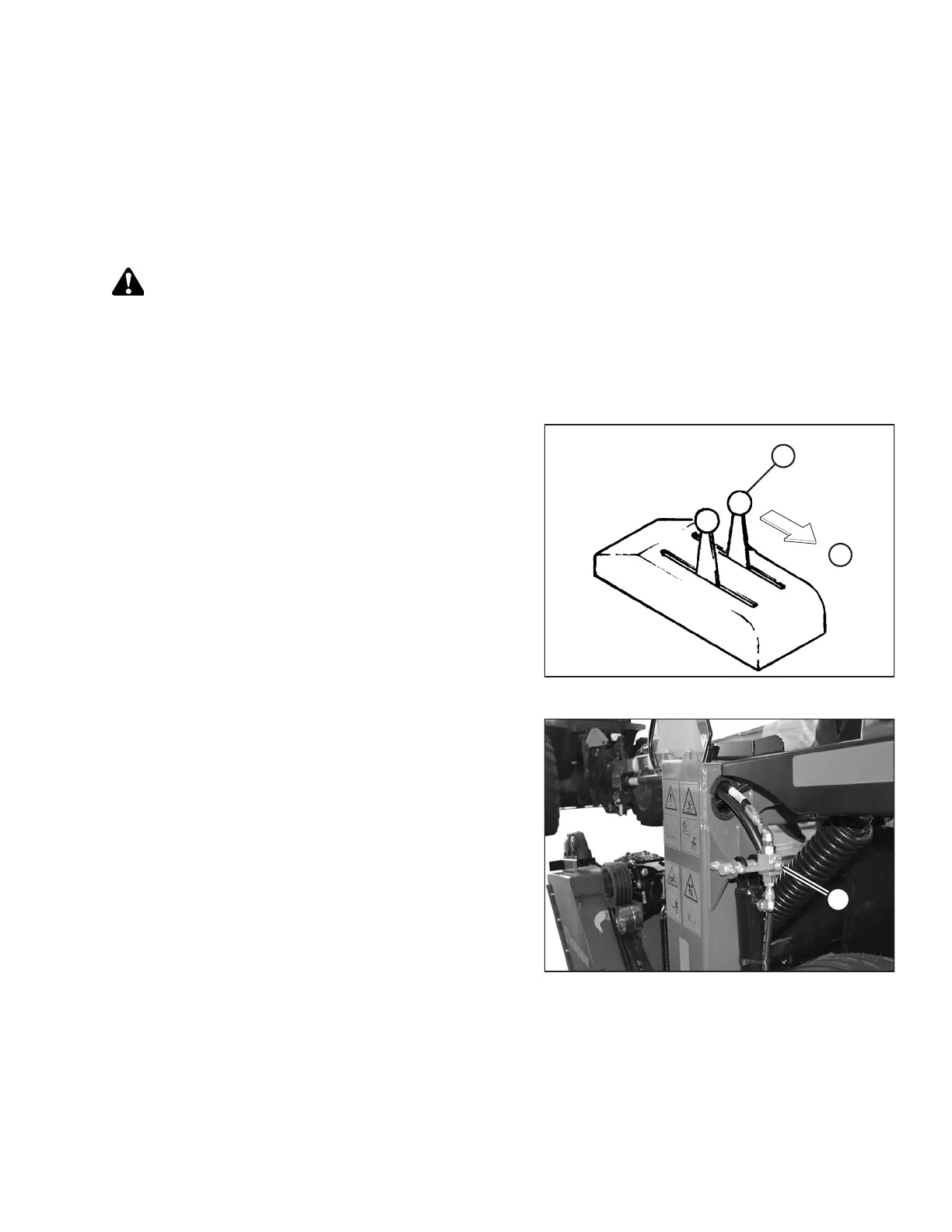

Figure 10.1: Tractor Cylinder Control Lever
1. Move cylinder control lever (A) backward to position (B) to
fully raise machine.
Figure 10.2: Lift Cylinder Lock-Out Valve in Closed
Position
2. Close lock-out valve (A) on each lift cylinder by turning the
handle to the closed position (90° angle to the hose).
To Next Page
