MacDon R113 - Installing Hydraulic Lines and Hoses

215585 88 Revision A
4.8.3 Installing Hydraulic Lines and Hoses
Hydraulic hoses distribute hydraulic fluid to the various components on the pull-type.
NOTE:
Refer to 10.4 Torque Specifications, page 184 for torque details.

$
%

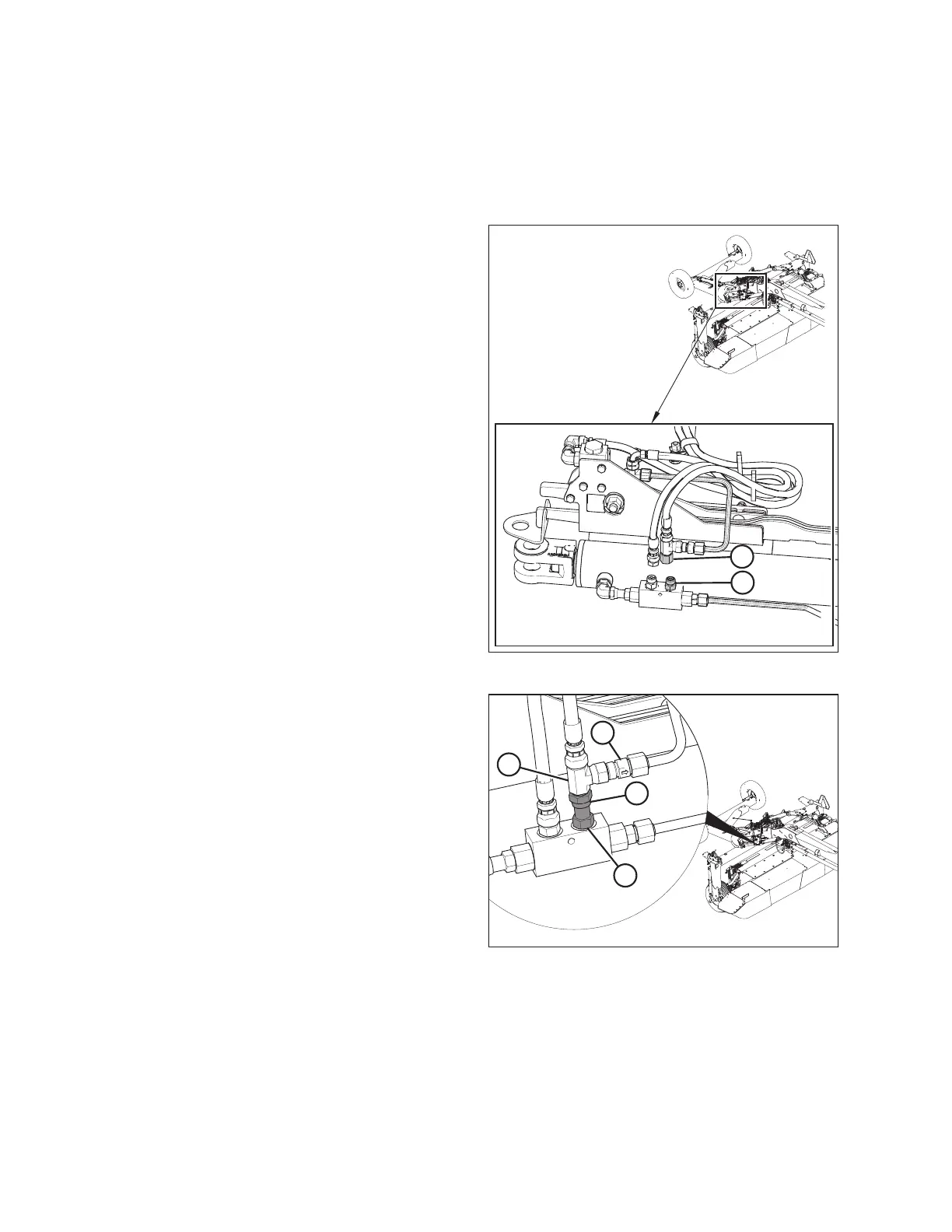

Figure 4.65: Alignment Valve Fitting
1. Retrieve steel lines and hoses from shipping bag.
2. Place a container or rag under the fitting on the hitch
swing cylinder to catch oil.
3. Remove existing fitting (A) from the block.
4. Remove cap (B) from tee fitting.
IMPORTANT:
Ensure O-ring is in place.

$
%
&
'
Figure 4.66: Alignment Valve Fitting
5. Retrieve ORFS-6 x ORB-6 connector (B) from the shipping
bag and install at location (A).
NOTE:
Ensure that the direction arrow on check valve (D) points
away from tee fitting (C).
ASSEMBLING THE ROTARY DISC PULL-TYPE – FACTORY-INSTALLED TRANSPORT
