6.6.2 Installing Discharge Shield – No Conditioner
Discharge shields may need to be removed for machine service, but a rotary disc pull-type without a conditioner should
NOT be operated without the discharge shield.

%
$

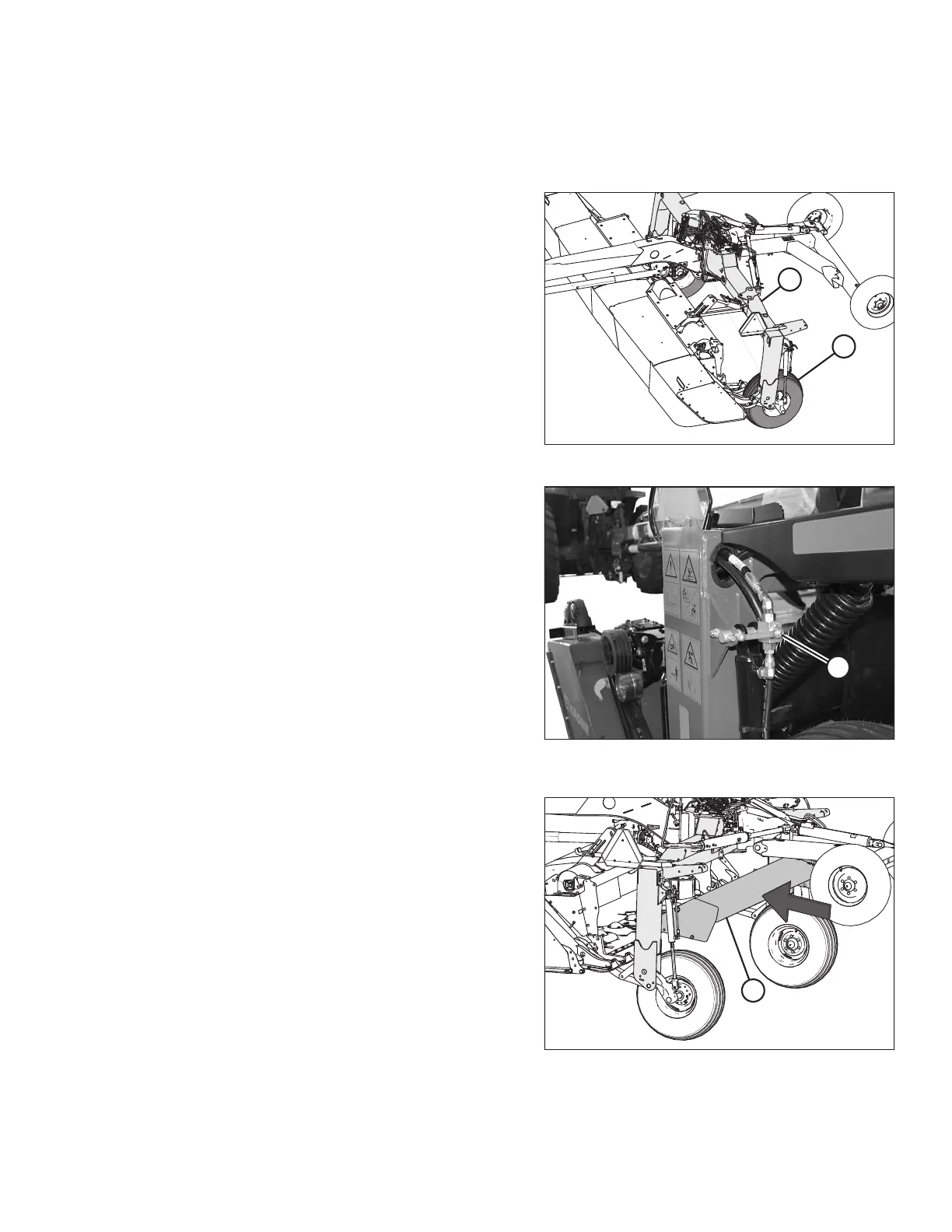

Figure 6.39: Rotary Disc Pull-Type with Transport
1. Raise the rotary disc pull-type fully and extend the center-
link to maximize the space between field wheels (A) and
carrier frame (B).

$
Figure 6.40: Lift Cylinder Lock-Out Valves – Closed
Position
2. Close lift cylinder lock-out valves (A) on both sides of the
rotary disc pull-type. Valve handles should be in the closed
position (90° angle to the hose).

$
Figure 6.41: Shield Rotated
3. Rotate shield (A) and pass it between the field wheels and
the carrier frame toward the rotary disc pull-type.
