MacDon R113 - Unpacking Curtains

215585 121 Revision A
6.5 Unpacking Curtains
Curtains provide protection from objects and debris thrown at high velocity from the cutterbar.

$

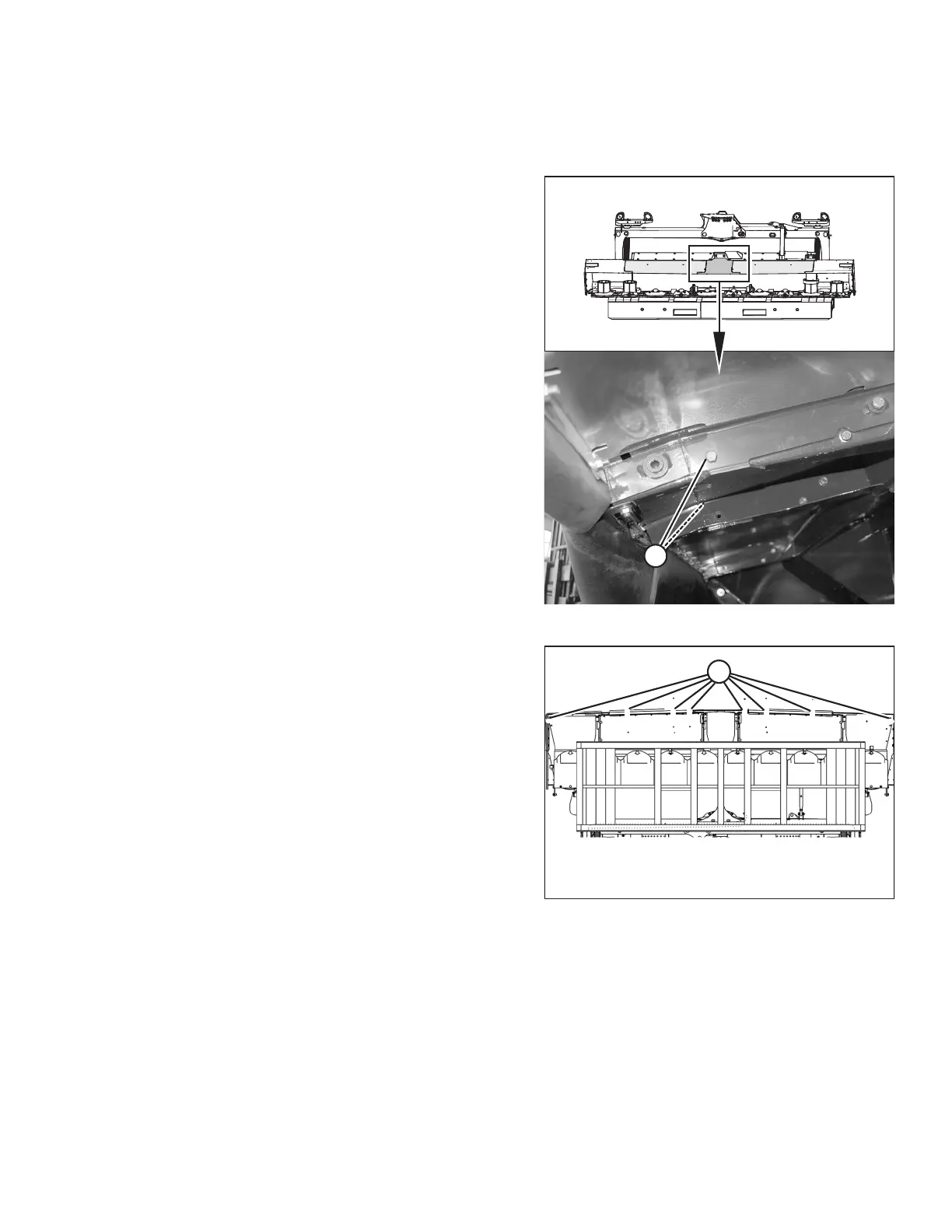

Figure 6.29: Underside of Cutterbar Doors
1. Remove two M10 hex head bolts (A) and center lock flange
nuts securing cutterbar door supports to center
channel frame.

$
Figure 6.30: Underside of Rotary Disc Pull-Type
2. Remove shipping wire (A) from cutterbar door curtains and
forming shield covers, and pull curtains down.
COMPLETING ROTARY DISC PULL-TYPE ASSEMBLY
