8.4 Checking Cutting Angle
Ensure the cutting angle is not set to an extreme position that could affect performance.

$% $

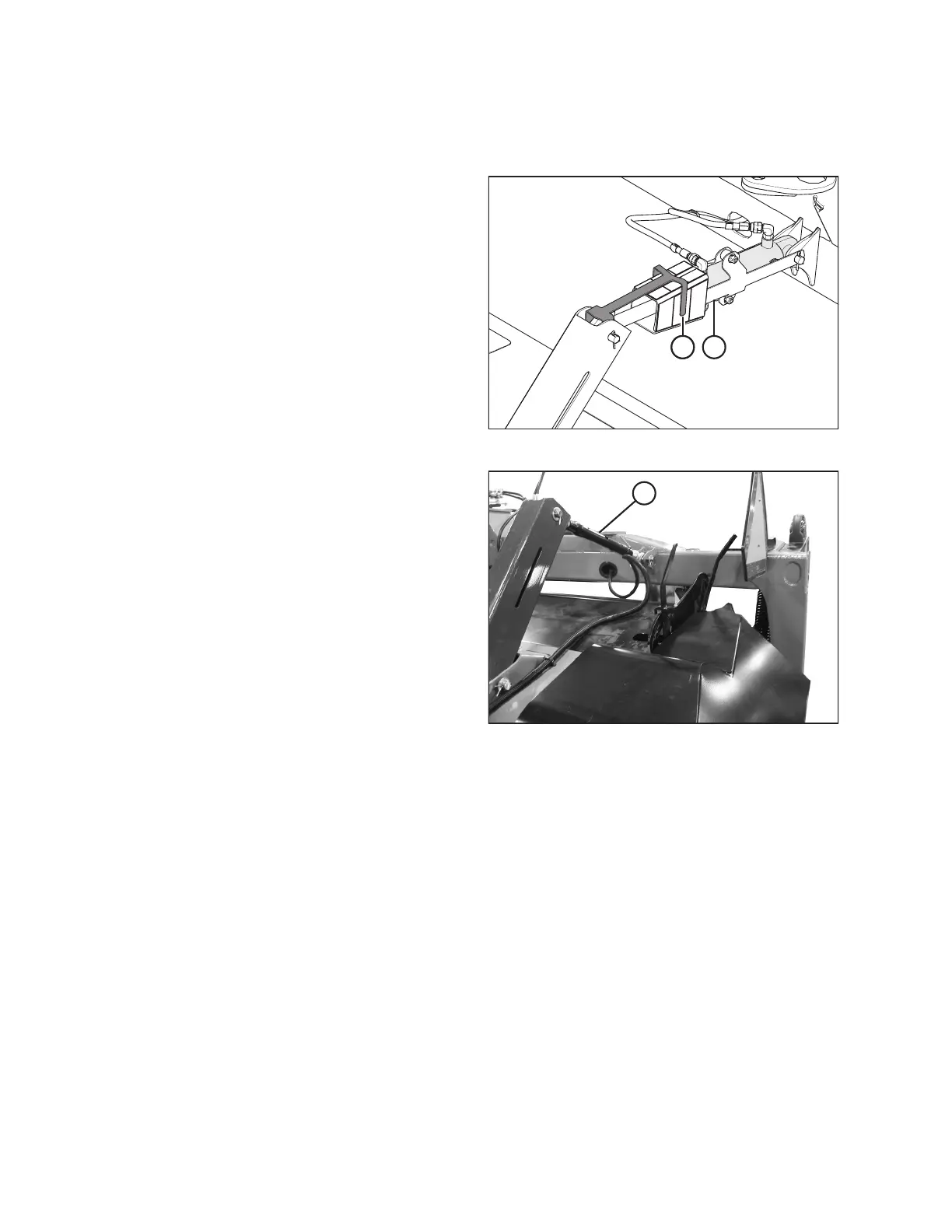

Figure 8.6: Hydraulic Center-Link
For a rotary disc pull-type equipped with hydraulic
center-link (A), the mid-point for header angle is indicated with
indicator bars (B) in the center (orange) of the indicator decal.

$
Figure 8.7: Mechanical Center-Link
For a rotary disc pull-type equipped with mechanical center-
link (A), the mid-point for header angle is the middle of the
adjustment range on the link.
