6.8 Removing Rotary Disc Pull-Type from Shipping Pallet – Transport
Installed
A shipping pallet is strapped to the pull-type and must be removed before delivery to the customer.
$
%

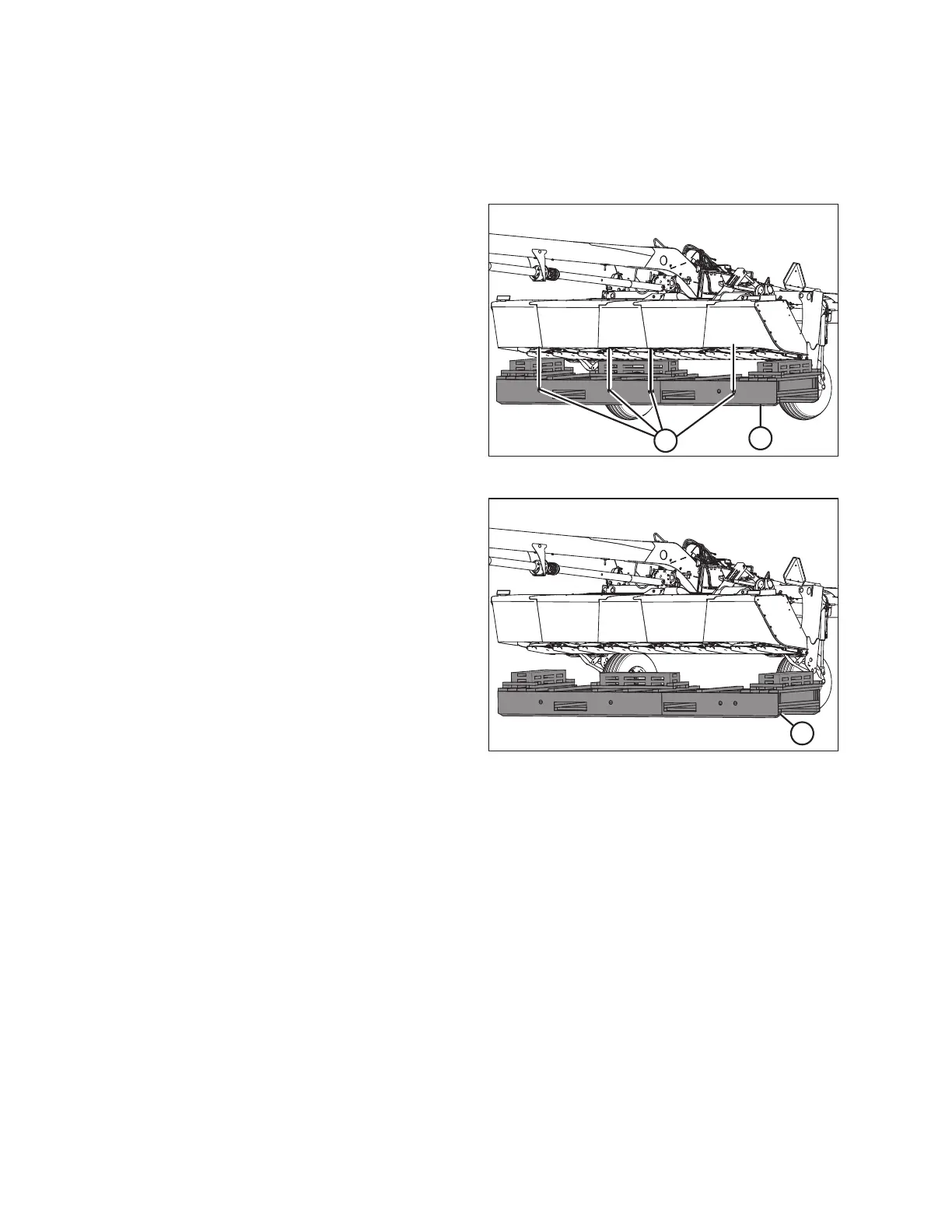

Figure 6.47: Strapping
1. Cut strapping (B) securing cutterbar to pallet (A).
IMPORTANT:
To prevent the pull-type from dropping, ensure float
springs were retensioned after repositioning the center-link
top anchor. For instructions, refer to Step 11, page 64 to
Step 13, page 64.
2. Use the transport wheels to lift the rotary disc pull-type
high enough that the pallet can be removed.
$
Figure 6.48: Removing Shipping Pallet
3. Use a chain or forklift to remove shipping pallet (A) from
underneath the rotary disc pull-type.
4. Lower pull-type to the ground.
COMPLETING ROTARY DISC PULL-TYPE ASSEMBLY
