Chapter 4: Assembling the Rotary Disc Pull-Type – Factory-
Installed Transport
Perform the following procedures in order when assembling a rotary disc pull-type with a factory-installed transport.
4.1 Repositioning Center-Link Top Anchor
The center-link top anchor must be repositioned into working position.

$
%
&

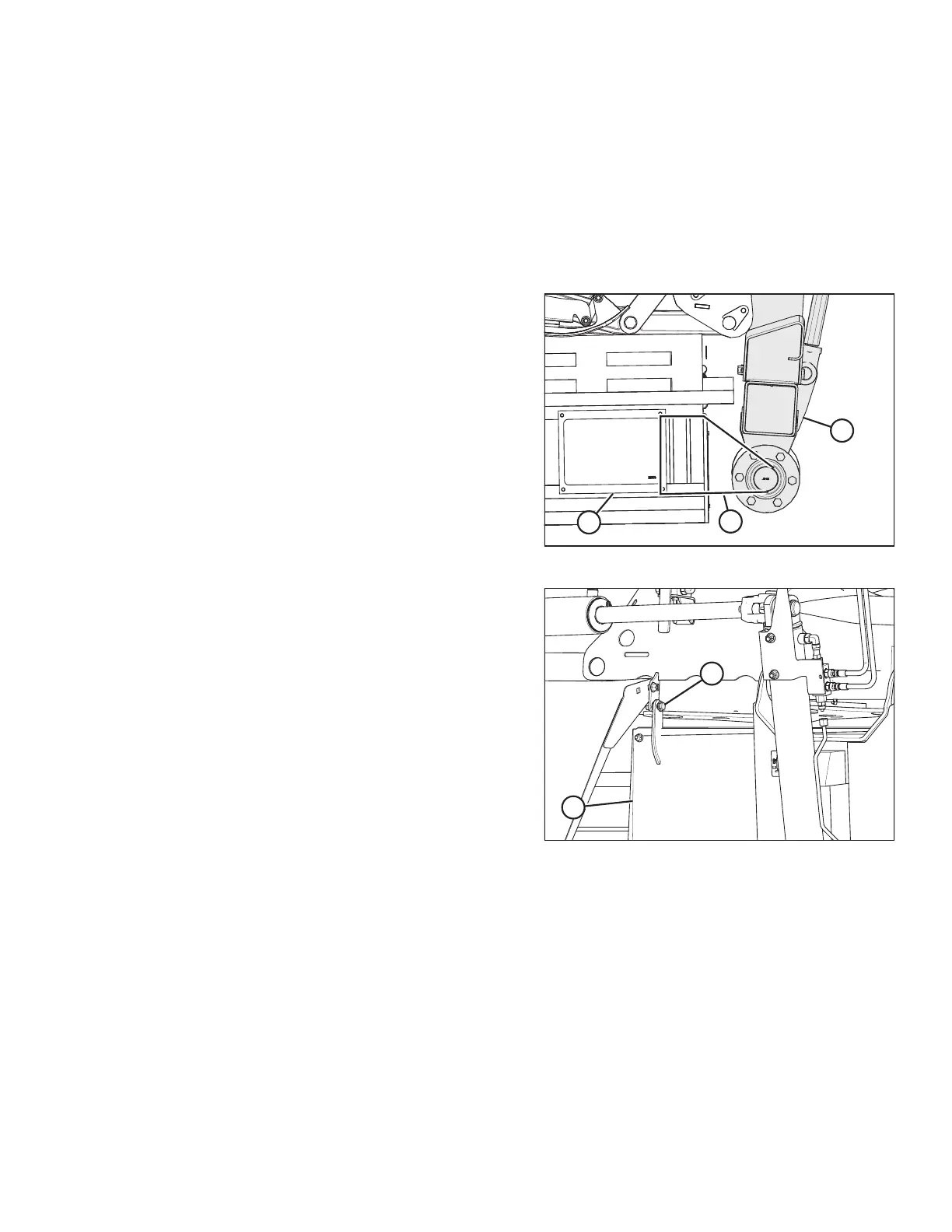

Figure 4.1: Transport Assembly
1. Cut straps (C) securing transport assembly (A) to pallet (B).

$
%
Figure 4.2: Center Shield – Finger Conditioners Only
2. For rotary disc pull-types with finger conditioners only:
Remove bolt (A) securing center shield (B) to the frame.
Lower the shield.
